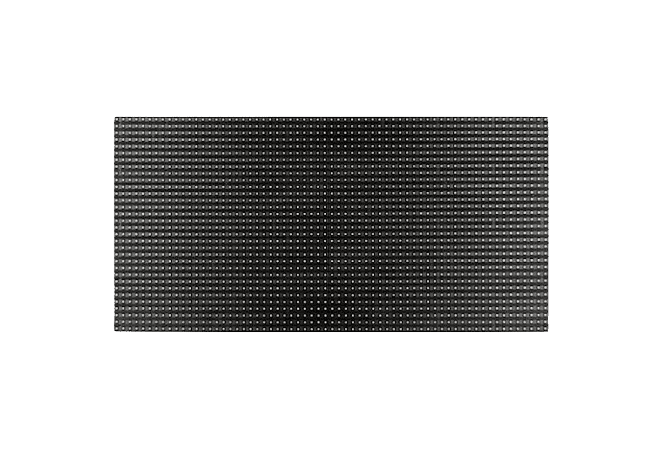

P5 LED Module
Are you looking for an ideal indoor LED display with a wide viewing angle, unique design, adjustable brightness, is energy-saving, and cost-effective? You probably need a P5 LED Screen Panel if these factors are what you consider.
The P5 LED Screen Panel makes excellent parameters, is versatile, and adaptive for various uses and utilization. It has unprecedented visuals perfect for a large indoor crowd during concerts, TV shows, awarding, school programs, weddings, etc. It also comes with a rental design for interchanging locations such as product launch events, trade shows, exhibits, and a lot more.
The P5 LED Display Panel passes through various tests and inspections after production. We check each pixel, parameters, quality, and components in such trials on exact and steady function and performance.
Do you have further questions? Please get in touch with us.
- Parameters
- Features & Descriptions
- Related Videos
P5 LED Module Specification | ||||||||||||||
| Pixel Pitch (mm) | 5 | |||||||||||||
| Pixel Configuration | SMD2121 | |||||||||||||
| Encapsulation | 3 in 1 | |||||||||||||
| Colors Matches | 6:3:1 | |||||||||||||
| Module Resolution (WxH) | 64 x 32 | |||||||||||||
| Module Size (mm) | 320 x 160 | |||||||||||||
P5 LED Display Specification | ||||||||||||||
| Pixel Density (pixel/m²) | 40000 | |||||||||||||
| Brightness (cd/m²) | ≥1000 (adjustable) | |||||||||||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||||||||||
| View Angle | Horizontal 140°; Vertical 140° | |||||||||||||
| Best Viewing Distance (m) | ≥5m | |||||||||||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||||||||
| Display Work Method | 1/8 Scan | |||||||||||||
| LED Driving Method | Constant driving current | |||||||||||||
| Color Contrast Ratio | 5000:1 | |||||||||||||
| Gray Grade | 16bit | |||||||||||||
| Display Color | 439, 804, 651, 110 | |||||||||||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||||||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, MultimodeHDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||||||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||||||||||
| Control System | ||||||||||||||
| Front/Rear IP Level | IP43 | |||||||||||||
| Working Temperature (ºc) | -20～+40 | |||||||||||||
| Stored Temperature (ºc) | -40～+80 | |||||||||||||
| Operation Humidity (RH) | 0-95% | |||||||||||||
| Display Lifetime(Hours) | Ten years or more (natural environment) 100000 hours (ideal environment) | |||||||||||||
| Maintenance | Rear / Front side | |||||||||||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||||||||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||||||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) | |||||||||||||
FEATURES
The P5 LED Screen Panel has the following features:
- Lightweight
The P5 LED Screen Panel weighs lighter than conventional LED screens. When lightweight, an LED screen makes easy installations and is cost-saving as it requires a minimal workforce.
- Rental Design
It has some rental designs such as boxes, anti-skid handles, crashproof edges, etc. You may add more features if you opt to customize it with us. Our R&D team is always ready to bring out the best for your project.
- Energy-saving
The P5 LED Module adopts the energy-saving technology vital for today’s equipment. This technology helps you save some energy and makes less consumption and bills. Energy-saving and low power consumption feature the latest and advanced approach to digital devices.
- Long Lifespan
All of our products pass quality inspections and aging tests after production. These tests ensure that each module is outstanding and can run for years with a steady performance.
CATEGORY
You’ll see the P5 LED Screen Panel in the following product series below. Also, you may ask us to customize its size, design, parameters, and specifications to cater to your desired project outcomes.
- Indoor Fixed LED Display
- Trade Show LED Display
- Flexible LED Screen
- LED Theater Screen
- Stadium LED Screen
- Transportation LED Screen
- LED School Sign
- Hospitality LED Screen
- Control Room Display Screen
- DJ LED Wall
- Stage LED Screen
- LED Display Ball
- Truck LED Advertising
- Museum LED Screen
- Indoor Rental LED Display
- Commercial LED Display
PROJECT/ RELATED POSTS
The P5 LED Module is utilized among our global projects in the long run. Among the projects are the following:
If you want to learn more about the P5 LED Display Panel, here are some helpful pages that you can visit. On these pages, you’ll see more comprehensive guides, features, case photos, and videos to help you get more information before your purchase.
- P5 SMD LED Display Screen
- LED P5 Indoor
- P5 Indoor Fixed LED Display
- P5 Ultra Thin Indoor Rental LED Display
CONTACT US
YUCHIP brings you our quality product series and screen solutions to add aesthetics and help you with advertising. Your business venture will surely be worthwhile when partnered with sound and digital equipment that eases brand sensitivity and advertising.
Suppose you have more questions, please reach us through the following links.
