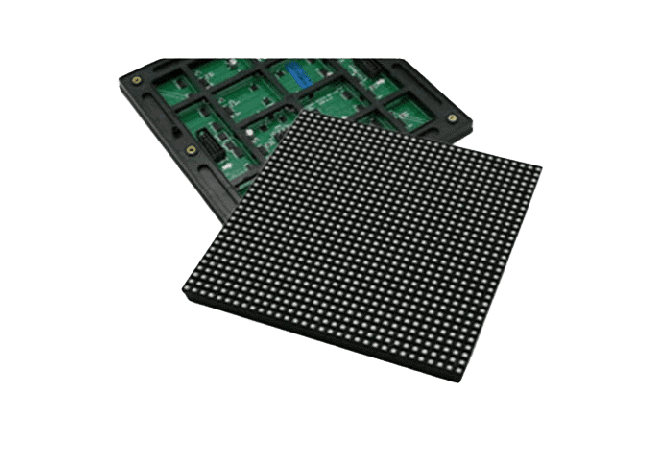

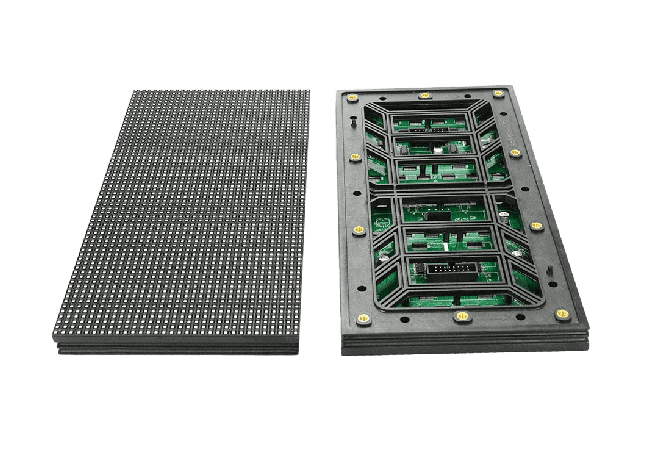

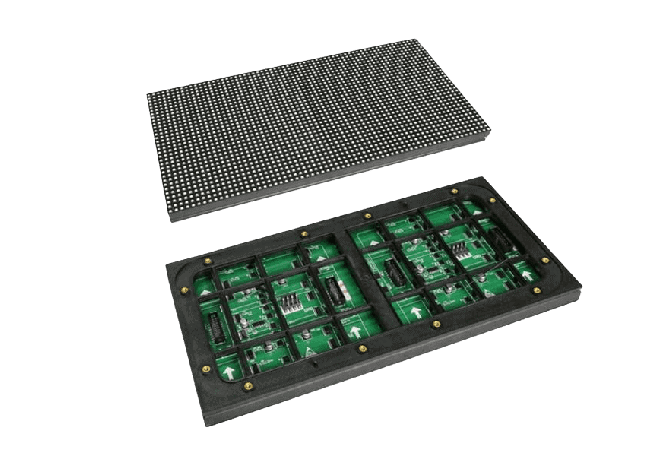

P5 Outdoor LED Module
The P5 Outdoor LED Screen Panel has been featured in many of our projects globally, including the Radiance of Artemis in Vietnam, which is the most giant outdoor LED screen in the country by far.
The P5 Outdoor LED Module is an ideal LED display choice for large billboards and advertising screens, as it is evident both far and near. Its brightness can reach up to 6500 cd/m² and a high refresh rate, making excellent and impactful visual presentations.
Perhaps, if you need a P5 Outdoor LED Display Panel, YUCHIP will be right there to provide you. Suppose you need a custom-made product, we’ll greatly help you achieve it.
Please send us a message at manager@yuchip.com if you have further questions.
- Parameters
- Features & Descriptions
- Related Videos
P5 Outdoor LED Module Specification | ||||||||||||||
| Pixel Pitch (mm) | 5 | |||||||||||||
| Pixel Configuration | SMD2727 | |||||||||||||
| Encapsulation | 3 in 1 | |||||||||||||
| Colors Matches | 6:3:1 | |||||||||||||
| Module Resolution (WxH) | 64 x 32 | 32 x 32 | ||||||||||||
| Module Size (mm) | 320 x 160 | 160 x 160 | ||||||||||||
P5 Outdoor LED Display Specification | ||||||||||||||
| Pixel Density（pixel/m²） | 40000 | |||||||||||||
| Brightness（cd/m²） | ≥7500 (adjustable) | |||||||||||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||||||||||
| View Angle | Horizontal 140°; Vertical 140° | |||||||||||||
| Best Viewing Distance (m) | ≥5m | |||||||||||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||||||||
| Display Work Method | 1/8 Scan | |||||||||||||
| LED Driving Method | Constant driving current | |||||||||||||
| Color Contrast Ratio | 5000:1 | |||||||||||||
| Gray Grade | 16bit | |||||||||||||
| Display Color | 439, 804, 651, 110 | |||||||||||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||||||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||||||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||||||||||
| Control System | ||||||||||||||
| Front/Rear IP Level | IP65 | |||||||||||||
| Working Temperature (ºc) | -20～+40 | |||||||||||||
| Stored Temperature (ºc) | -40～+80 | |||||||||||||
| Operation Humidity (RH) | 0-95% | |||||||||||||
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) | |||||||||||||
| Maintenance | Rear / Front side | |||||||||||||
| Working Voltage | AC110 / AC220V±10% 47～63Hz | |||||||||||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||||||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) | |||||||||||||
FEATURES
The P5 Outdoor LED Screen Panel has the following features:
- Quality Material
The P5 Outdoor LED Screen Panel utilizes nothing but good and high-grade materials. Its components are crafted carefully and are from trusted brands in the industry.
- Front Maintenance
It makes a very convenient maintenance process which is through the front side. You can do it by using a magnet or screwdriver that easily detaches the module from the cabinet, energy-saving, cost-saving, and making less workforce requirement.
- Energy-saving
Adaptive to the environmental issues and needs, the P5 Outdoor LED Display Panel is energy-saving and conducive to low power-consumption campaigns. It helps you save a significant amount of renewable energy.
- 3-5 Year Warranty
The product, perhaps all of our products, comes with a full 3-5 year warranty. There is no need to worry about the sudden need for maintenance and component check; our skilled team and engineers will perform it.
CATEGORY
You’ll see the P5 Outdoor LED Module among the following product series and solutions below. We also welcome customization of sizes, parameters, components, and cabinet materials.
- Transportation LED Screen
- Stadium LED Screen
- Outdoor LED Screen
- LED Wall Rental Outdoor And Indoor Q Series
- Rental LED Wall C Series
- 3D LED Display
- Commercial LED Display
- LED Video Wall Rental
- Truck LED Advertising
- Glass LED Screen
- Energy Saving LED Display
- LED Curtain Display
- Trade Show LED Display
- Stage LED Screen
- LED Display Ball
- Transparent LED Screen
- Outdoor LED Screen Rental
- LED Poster
- Flexible LED Screen
- LED School Sign
- Hospitality LED Screen
RELATED POSTS/ PROJECTS
If you want to learn more about the P5 Outdoor LED Display Panel, here are some helpful pages/posts you may visit. The links are as follows:
- Radiance of Artemis–The Biggest Outdoor HD LED Display in Vietnam
- P5 Outdoor LED For Magyar Szinhaz Theater, Hungary
- YUCHIP: The Biggest Outdoor HD LED Display In Vietnam
- P5 LED Panel
- P5 LED Screen
- P5 Outdoor LED Display
