P56 Outdoor LED Module
Are you looking for an ultra-transparent LED screen for buildings and towers? Are you considering buying an LED display for advertising and decorative purposes? YUCHIP brings you the P56 Outdoor LED Module.
We can install the P56 Outdoor LED Screen Panel in various ways. While its overall weight can affect the options for installation, you can still choose to have it in a hanging design, building-mounted, wall-mounted, and for the rooftop.
Also, since it has a mesh design, it makes quick heat dissipation without an air conditioner, thus relieving and maintaining the cool system temperature.
If you have more questions, please don’t hesitate to message us at manager@yuchip.com.
- Parameters
- Features & Descriptions
- Related Videos
P56 Outdoor LED Module Specification | |
| Pixel Pitch (Mm) | 56 |
| Pixel Configuration | 1R1G1B |
| Encapsulation | DIP346 |
| Colors Matches | 6:3:1 |
| Module Resolution (WxH) | 8 x 8 |
| Module Size (mm) | 200 x 200 |
P56 Outdoor LED Display Specification | |
| Pixel Density (pixel/㎡) | 1600 |
| Brightness (cd/㎡) | ≥6500 (adjustable) |
| Brightness Adjusted | 100 grade by software or by auto-optic induced |
| View Angle | Horizontal 120°; Vertical 70° |
| Best Viewing Distance (m) | ≥20m |
| Communication Distance (m) | <100meter by Internet Cable (without relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display Work Method | 1/16 Scan |
| LED Driving Method | Constant driving current |
| Color Contrast Ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) |
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP, WINDOWS 7, etc. |
| Front/Rear IP Level | IP65 |
| Control System | |
| Working Temperature (ºc) | -20～+60 |
| Stored Temperature (ºc) | -30～+80 |
| Operation Humidity (Rh) | 0-95% |
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear |
| Working Voltage | AC110 / AC220V±10% 47～63Hz |
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one) |
FEATURES
The P56 Outdoor LED Screen Panel has functions, features, and properties listed below.
- Clear Visuals
The P56 Outdoor LED Module is an outdoor LED screen with a pixel pitch of 56. Considered high or big pixel, the product assures you a clear vision from a distance. And because it often comes in colossal size, it is an exemplary screen display for a billboard in open spaces, substantial sporting venues, tall buildings, and towers.
- Energy-efficient
YUCHIP’s products, including the P56 Outdoor LED Display Panel, have adopted the latest technology, including the low power consumption technique, in our devices to save electricity.

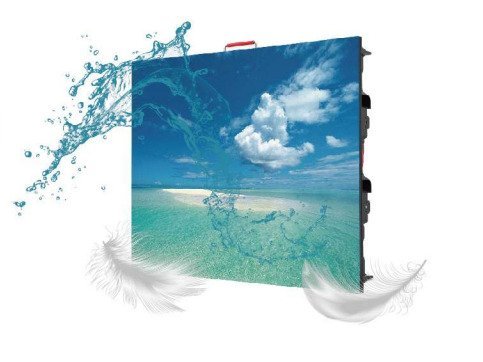

- Waterproof
It has IP65 weatherproof and waterproof protection. The outer cover of the panels and cabinets is also corrosion-resistant to ensure the product’s long lifespan and sound performance.
- Simultaneous Display
If you have multiple devices and wish to have identical content at a time, the P56 Outdoor LED Screen Panel provides you with a remote control system through a pc or laptop. We will provide its functions, manuals, and settings to you.
- Sturdy Component
From the tangible component inside to the outer core, YUCHIP uses only the sturdy ones. It gives you hassle-free service and helps you focus on other aspects of your business. Also, it comes in easy maintenance.
