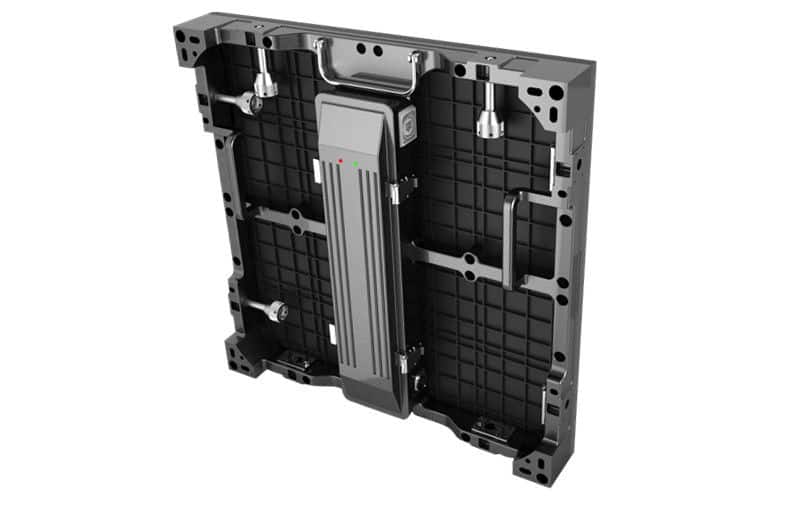

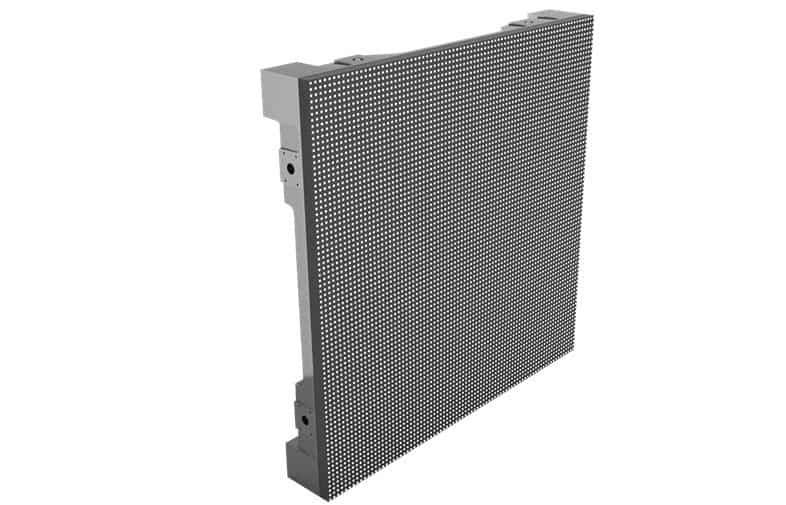

P6.25 Rental LED Screen

P6.25 Rental LED Screen has die-casting aluminum structure makes it a pretty hot choice for indoor rental LED display projects.

With ultra-lightweight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person.

Send Your Inquiry Now

Product Features
Parameters
Related Videos

P6.25 Rental LED Screen die-casting aluminum rental LED display is widely used for concerts, events, TV studios, etc.;
Ultra-lightweight: Utilizing die-casting aluminum LED cabinets;
Easy handling: With ultra-lightweight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
Quick and easy assembly: 4 set tight lockers equipped on each LED cabinet for seamless connection between cabinets.
P6.25 Rental LED Screen Stable quality: Die-casting aluminum LED display is of high quality for frequent movement from one site to next;
Ultra-slim: P6.25 Rental Led Screen is designed at 65mm thickness;
Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands of projects in 10 years;
Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;
Trusted service: Local cooperation distributors in Italy, Poland, Malaysia, and Thailand; 24/7 LED experts online support; LED on-site engineer support;
Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;
Reasonable price: Profit back to the customer for long term mutual development cooperation;
P6.25 Rental LED Screens die-casting aluminum structure makes it a pretty hot choice for indoor rental LED displays project.

LED MODULE PARAMETER
Pixel pitch (mm)	6.25
Pixel configuration	3 in 1
Encapsulation	SMD3528
Colors matches	6:3:1
Module resolution (pixels)	40 x 40
Module pixel	1600
Module size (mm)	250 x 250
LED CABINET SPECIFICATION
Cabinet size (mm)	500 x 500 x 90
Cabinet resolution (pixels)	80 x 80
Cabinet pixels (pixels)	6400
Cabinet material	Aluminum
Cabinet weight (kg)	8kg
LED DISPLAY SPECIFICATION
Pixel density (pixel/㎡)	25600
Brightness (cd/㎡)	≥1500 (adjustable)
Brightness adjusted	100 grade by software or by auto-optic induced
View angle	Horizontal 140°; Vertical 140°
Best viewing distance (m)	≥6m
Communication distance (m)	<100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km
Display work method	1/8 Scan
LED driving method	Constant driving current
Color contrast ratio	1800:1
Gray Grade	16bit
Display Color	439, 804, 651, 110
Refresh Frequency (Hz)	≥1000
Picture display method	Intellective control technology, test-itself technology, correct technology, Synchronization Control
Input signal	DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting)
System operating	WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.
Front/Rear IP Level	IP43
Working temperature (ºC)	-20～+60
Stored temperature (ºC)	-30～+80
Operation humidity (RH)	0-95%
Display Lifetime (hours)	10 years or more (natural environment) 100000 hours (ideal environment)
Maintenance	Rear side
Working Voltage	AC110 / AC220V±10% 47～63Hz
Out of controlled dot	≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one)
