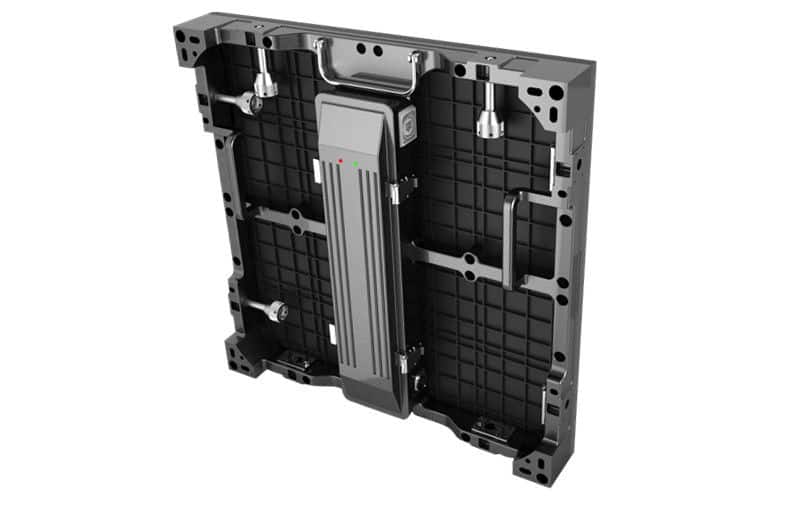

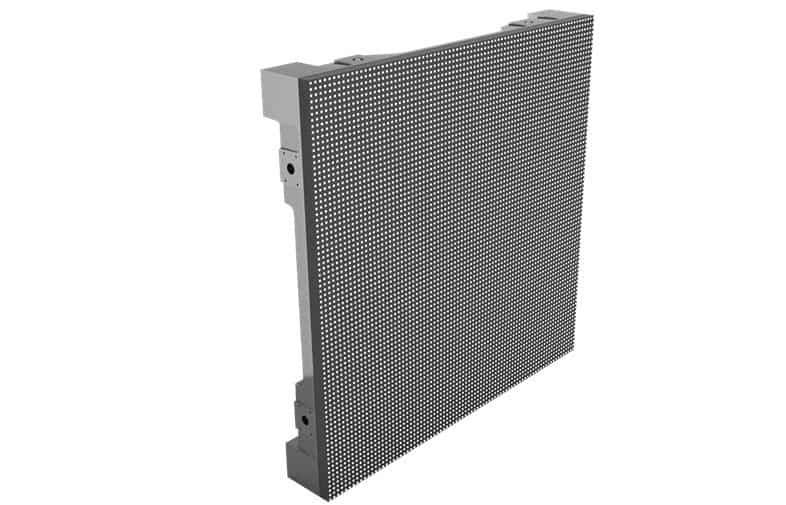

P6.25 Rental LED Screen
P6.25 Rental LED Screen has die-casting aluminum structure makes it a pretty hot choice for indoor rental LED display projects.
With ultra-lightweight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person.
- Product Features
- Parameters
- Related Videos
- P6.25 Rental LED Screen die-casting aluminum rental LED display is widely used for concerts, events, TV studios, etc.;
- Ultra-lightweight: Utilizing die-casting aluminum LED cabinets;
- Easy handling: With ultra-lightweight and fast lockers features, the LED cabinet can be easily assembled and dismantled by one single person;
- Quick and easy assembly: 4 set tight lockers equipped on each LED cabinet for seamless connection between cabinets.
- P6.25 Rental LED Screen Stable quality: Die-casting aluminum LED display is of high quality for frequent movement from one site to next;
- Ultra-slim: P6.25 Rental Led Screen is designed at 65mm thickness;
- Stable quality: Professionally supplied LED screen to over 80 countries and installed thousands of projects in 10 years;
- Innovation: Carefully listen to customer need and create improved LED display products to support local LED sign market development;
- Trusted service: Local cooperation distributors in Italy, Poland, Malaysia, and Thailand; 24/7 LED experts online support; LED on-site engineer support;
- Strong supply ability: 5000㎡ per month LED display production and regular products in stock for quick delivery;
- Reasonable price: Profit back to the customer for long term mutual development cooperation;
- P6.25 Rental LED Screens die-casting aluminum structure makes it a pretty hot choice for indoor rental LED displays project.
LED MODULE PARAMETER | |
| Pixel pitch (mm) | 6.25 |
| Pixel configuration | 3 in 1 |
| Encapsulation | SMD3528 |
| Colors matches | 6:3:1 |
| Module resolution (pixels) | 40 x 40 |
| Module pixel | 1600 |
| Module size (mm) | 250 x 250 |
LED CABINET SPECIFICATION | |
| Cabinet size (mm) | 500 x 500 x 90 |
| Cabinet resolution (pixels) | 80 x 80 |
| Cabinet pixels (pixels) | 6400 |
| Cabinet material | Aluminum |
| Cabinet weight (kg) | 8kg |
LED DISPLAY SPECIFICATION | |
| Pixel density (pixel/㎡) | 25600 |
| Brightness (cd/㎡) | ≥1500 (adjustable) |
| Brightness adjusted | 100 grade by software or by auto-optic induced |
| View angle | Horizontal 140°; Vertical 140° |
| Best viewing distance (m) | ≥6m |
| Communication distance (m) | <100meter by Internet Cable(without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display work method | 1/8 Scan |
| LED driving method | Constant driving current |
| Color contrast ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture display method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) |
| System operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP43 |
| Working temperature (ºC) | -20～+60 |
| Stored temperature (ºC) | -30～+80 |
| Operation humidity (RH) | 0-95% |
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63Hz |
| Out of controlled dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
(P6.25 Rental LED Screen)
