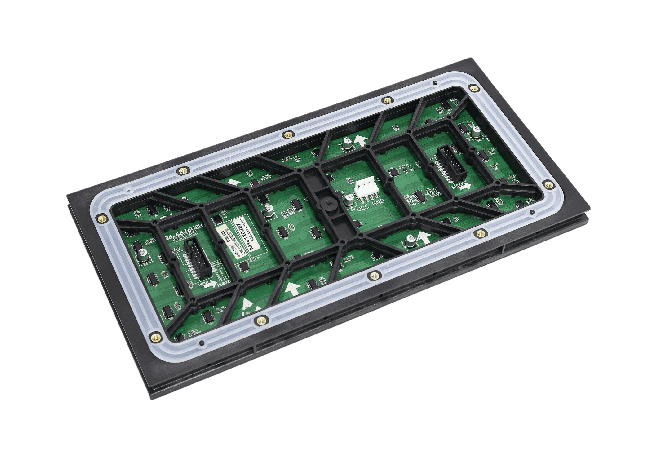

P6.67 LED Module


Do you need a rental LED screen with radiant designs for your project or events? Here’s our P6.67 LED Screen Panel, which we can primarily design for you.

You may choose among the available cabinet materials and customize its size, design, application, etc. Our R&D will help you customize and bring out your ideal project outcomes.

The P6.67 LED Screen Panel passes through different inspections and tests before pulling it out from our factory. Every pixel is checked, and its components are carefully crafted in our 15 000 sqm factory in Shenzhen, China.

Should you need further assistance or need answers to your questions? Please message us by clicking the button below.




P6.67 LED Module Specification

Pixel Pitch (mm)

6.67

Pixel Configuration

SMD3528

Encapsulation

3 in 1

Colors Matches

6:3:1

Module Resolution (WxH)

48 x 48

Module Size (mm)

320 x 320

P6.67 LED Display Specification

Pixel Density (pixel/㎡)

22477

Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by Auto-optic induced

View Angle

Horizontal 110°; Vertical 70°

Best Viewing Distance (m)

≥6m

Communication Distance (m)

<100meter by Internet Cable(without Relay; Multimode fiber cable < 500m; Single-mode fiber cable <20km

Display Work Method

1/6 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥600

Picture Display Method

Intellective control technology, test-itself technology, correct technology, Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP43

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature (ºC)

-20~+60

Stored Temperature (ºC)

-30~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Front/ Rear side

Working Voltage

AC110 / AC220V±10% 47~63HZ

Out Of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

The P6.67 LED Screen Panel has the following features:

  • Front Maintenance

Full Front Maintenance

The P6.67 LED Display Panel has a full front maintenance feature. Its fixed and rental designs use front maintenance as it is easier and more convenient. It also requires less workforce and is cost-saving as it is quick and can be done in a few minutes.

  • Wide Viewing Angle

It has a wide viewing angle of 140 for vertical and horizontal views. With its ideal measurement, audiences from both sides can have the same viewing experience as the upfront viewers.

  • Cost-effective

LED screens are typically massive in size and weight. It is mainly because they are composed of enormous equipment to run smoothly. In addition, LED screens utilize the latest technology as they are costly. And to make the best out of a considerable investment, a product should enable you to make use of it in various applications. In a narrow sense, YUCHIP’s LED screen panels, such as the P6.67 LED Screen Panel, are a versatile solution for all your needs.

CATEGORY

You’ll see the P6.67 LED Screen Panel in the following series below. Also, if you opt to customize the LED display’s design, size, cabinet material, outer core, specifications, and some parameters, you may ask us to do so. YUCHIP has a professional team that will assist you firsthand. Please message us for more inquiries.

Stage LED Wall Display
Stage LED Wall Display

RELATED POSTS

You can read more about the P6.67 LED Module by visiting the link/s below. Please let us know if you have further questions or inquiries.

Ultra Thin Led Display P6.67
P6.67 Ultra Thin LED Display

The P6.67 LED Display Panel is among YUCHIP’s commonly utilized LED products for fixed and rental use. It comes with radiant features perfect for advertising, commercial, rental, or personal use.
