P8 Dual Maintenance LED Display


P8 Dual Maintenance LED Display has high brightness up to 8000cd/㎡, and special requirement for commercial LED screen projects can reach 10,000nits.

The LED billboards present clear, vivid images and videos even under direct sunshine.




  • It can be front or rear maintenance,
  • Much easier for module repairing\disasembly work;
  • Unique design with high precision, much stable, and flat.
  • 960*960mm standard iron box — high smoothness of high accuracy.
  • P8 Dual Maintenance LED Display is a high resolution in the outdoor LED screen series and is of most popular choice for its balanced resolution and cost.
  • Standard LED cabinet of IP65, waterproof and dustproof;
  • High brightness up to 8000cd/㎡and special requirement for commercial LED screen projects can reach 10,000nits. The LED billboards present clear, vivid image and video even under direct sunshine;
  • High definition for outdoor LED panel projects, P8 is the most popular choice for outdoor LED screen projects;
  • Short best view distance, for P8 Dual Maintenance LED Display, the best view distance is above 8 meters; audience/potential consumers correctly passed by would enjoy a clear image that standing above 8 meters;
  • It is applied as outdoor fixed installation on a steel pole, wall building, building roof, etc.

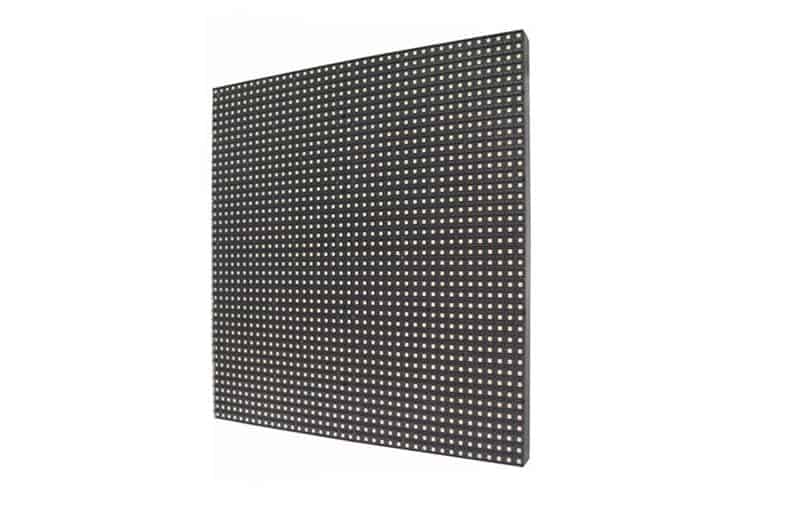

Module Parameter Item

Specification Parameter

Pixel Pitch、Resolution rate、size

8mm、40*40、320*320*34mm

Pixel color、 Pixel LED

1R1G1B、 SMD3535

Working voltage、Module Power

DC5V、78W

Driving IC、Driving way

JXI5020B、1/4

HUB

QP-HUB54-V1.1

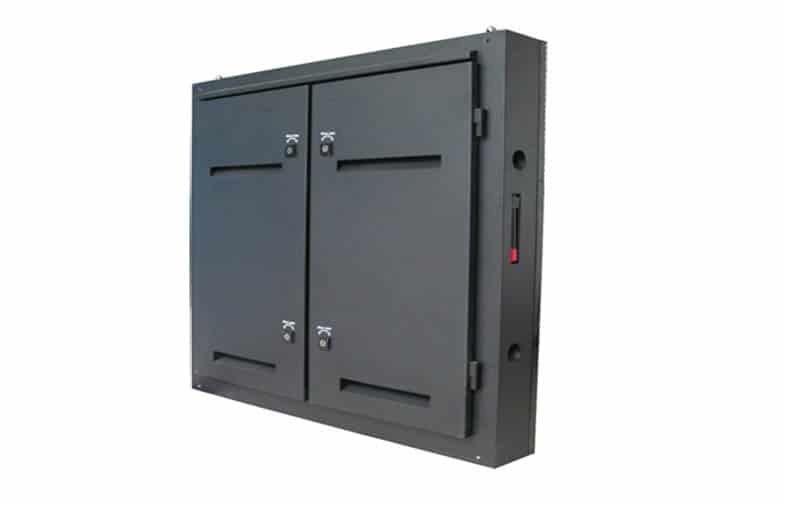

Cabinet  Parameter Material、Cabinet Weight(kg/Cabinet)

SPCC、50kg/Cabinet

Resolution rate、size、Module quantity

120*120、960*960*154mm、3*3

Density

15625点/㎡

White balance 、Color temperature

6300 CD/㎡、6500-8000K

view angel、Non-Flatness、Module interval

H:110°;V:110°、<0.5mm、<0.5mm

Maximal power/㎡、Average power/㎡

900W/㎡、300W/㎡

Frame frequency、Refresh frequency、Gray grade

60Hz、2000Hz、13bit

Control system、System supports

Novastar / Linsn /、Windows XP,WIN 7,

Working temperature、Protection grade

-10℃ – +40℃、Front/Back:IP65/IP54



(Dual Maintenance LED Display)
