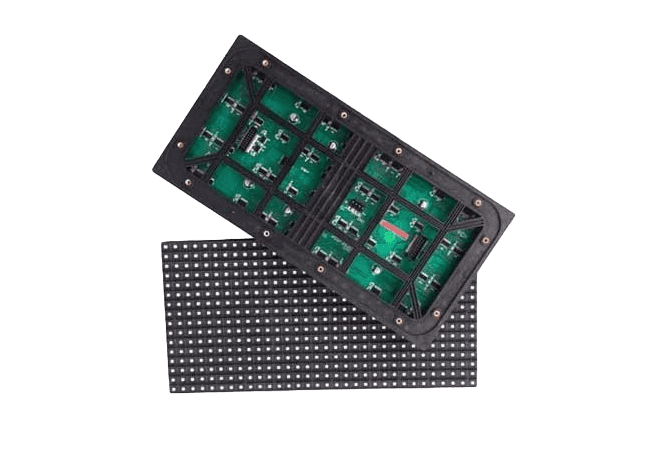

P8 Outdoor LED Module


The P8 Outdoor LED Screen Panel is the most adaptive LED screen product. It is applied in various fields and locations as ideal for distant viewing.

Often comes in giant sizes and a high number of modules, the P8 Outdoor LED Module is a cost-effective advertising product. Apart from using it for business-related purposes, it is also perfect for sports, trade shows, traffic information screens, and more.

Above all, it has a sturdy performance in the long run as it passes through different tests such as aging, display, and screen tests. Our quality assurance team thoroughly checks its diodes, software, panels, and components to ensure you of its excellent quality and steady performance.

For more information, don’t hesitate to contact us at manager@yuchip.com.




P8 Outdoor LED Module Specification

Pixel Pitch (mm)

8

Pixel Configuration

1R1G1B

Encapsulation

3 in 1

Colors Matches

6:3:1

Module Resolution (WxH)

40 x 40

Module Size (mm)

320 x 320

P8 Outdoor LED Screen Specification

Pixel Density (pixel/㎡)

15625

Brightness (cd/㎡)

≥8000 (adjustable)

Brightness Adjusted

100 grade by software or by auto-optic induced

View Angle

Horizontal 110°; Vertical 70°

Best Viewing Distance (m)

≥7m

Communication Distance (m)

<100meter by Internet Cable (without relay; Multimode fiber cable < 500m; Single-mode fiber cable < 20km

Display Work Method

1/4 Scan

LED Driving Method

Constant driving current

Color Contrast Ratio

1800:1

Gray Grade

16bit

Display Color

439, 804, 651, 110

Refresh Frequency (Hz)

≥1000

Picture Display Method

Intellective control technology, test-itself technology, correct technology,  Synchronization Control

Input Signal

DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting)

System Operating

WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc.

Front/Rear IP Level

IP65

Control System

Novastar, Linsn, LEDvision, LEDset

Working Temperature

(ºC)

-20~+60

Stored Temperature (ºC)

-30~+80

Operation Humidity (RH)

0-95%

Display Lifetime (hours)

Ten years or more (natural environment)

100000 hours (ideal environment)

Maintenance

Rear side

Working Voltage

AC110 / AC220V±10% 47~63Hz

Power Consumption

Max: 900W/㎡ ; Ave:400W/㎡

Out of Controlled Dot

≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart from the normal one)



FEATURES

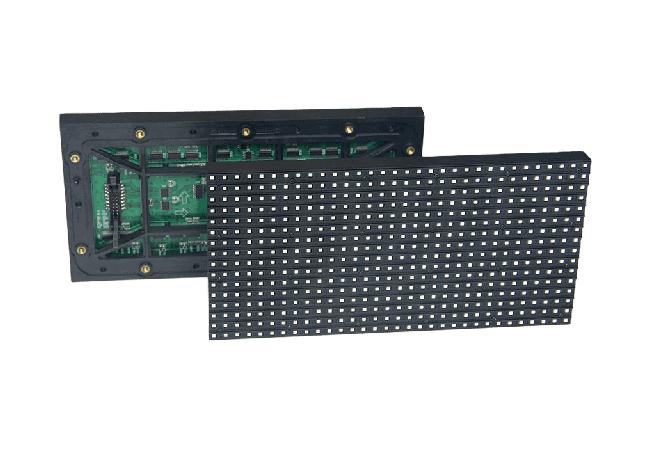

The P8 Outdoor LED Screen Panel has the following features and advantages.

  • Great Brightness Level

The P8 Outdoor LED Module has a smooth level of brightness. Its refresh rate and brightness rashes up to 1000 Hz and 8000 cd/m², respectively. It results in a more precise video and image quality as these two parameters are correlated.

  • User-friendly Software

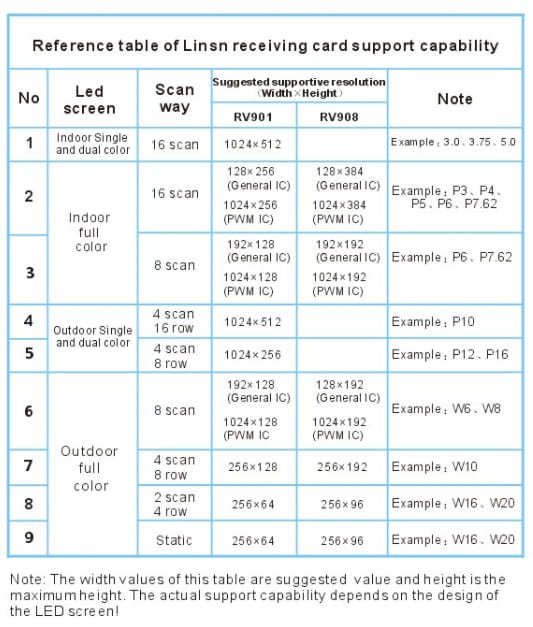

Linsn Software

It utilizes premium controls systems in the market. It includes Novastar, Linsn, LEDVision, LEDset, and more. This software is commonly used across countries as it has excellent security and easy content customization.

  • Available In Various Design

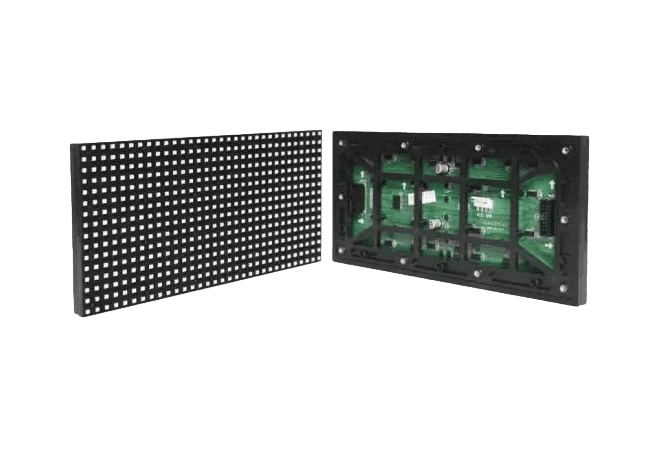

The P8 Outdoor LED Display Panel is available in various designs and applications. For example, you may opt for a stadium perimeter design, flexible, curved, sphere, or plain flat panel. Please send us your queries regarding design and size right away.

  • Aging Test

LED Screen P16

Before delivery, the P8 Outdoor LED Module passes through the various display, screen, and aging tests. It is to make sure that all parts, both tangible and intangible, are working well to ensure their reliable function in the future.

CATEGORY

We always welcome customization of various designs, sizes, and installations. Should you need a P8 Outdoor LED Module, below are the series it belongs to. Please get in touch with us for more questions or inquiries.

RELATED POSTS/ PROJECTS

Here are a few links you may read about the P8 Outdoor LED Display Panel.

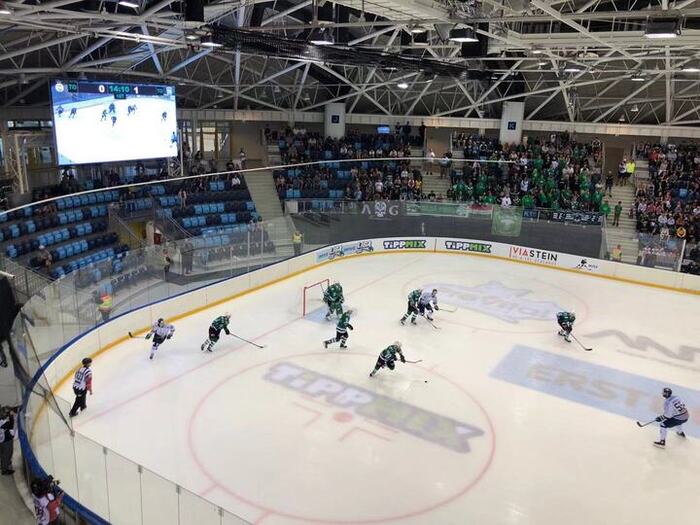

YUCHIP P8 LED Screen In Hungary's Ice Hockey Stadium
YUCHIP P8 LED Screen In Hungary’s Ice Hockey Stadium
