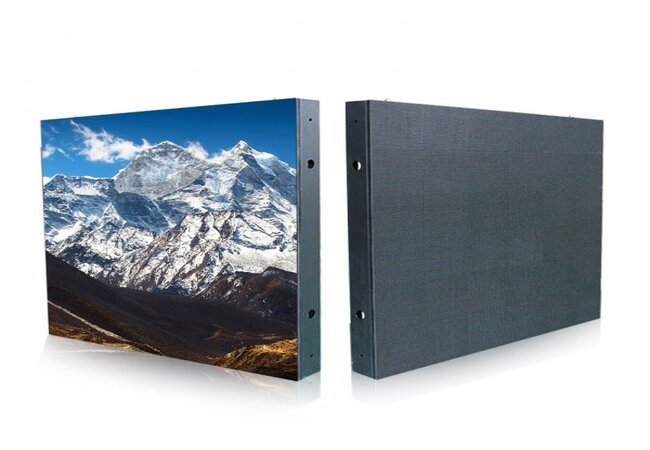

P8 Outdoor LED Screen
The P8 Outdoor LED Screen has high brightness, vivid color, high gray level, ensuring the best display and steady visual impact. The maximum power consumption is 500W/square meter while the average is 200W/square meter, decreasing electricity consumption to the maximum extent and saving operation costs.
P8 Outdoor LED Display also has great heat dissipation technology, which is an advanced digital screen mechanics. It has a practical and reliable design that has a long life span of 10-12 years.
P8 Outdoor LED screen is among YUCHIP’s most selling LED display products because of its perfect and balance pixel pitch for outdoor use. It can be installed as an advertising screen, information display, conventional decoration, or building wall.
- P8 Outdoor LED Screen Product Features
- Parameters
- Related Videos
If you’re about saving your structure and labor cost and want to have a reliable advertising or information display, a P8 Outdoor LED screen could indeed serve you better.
When it comes to advertising and wall-mounted installation, there are various factors you need to consider in choosing an outdoor LED screen. Some of the elements are below.
- Immediate Cooling
There are four aerofoil fans in each P8 Outdoor LED Display cabinet. The ventilation volume is 5.6 cubic meters per minute, and the air circulation is twenty times every minute inside the cabinet; thus, it has high cooling efficiency.
Heat dissipation and immediate cooling are some factors that affect the overall life of a product. When these things are set and designed correctly, then your product is there to last.
- Practical And Reliable Design
P8 Outdoor LED Display has a thorough guide rain-thorough design. Its improved cabinet design ensures cabinet strength preventing damage during transportation. Also, they come in individual boxes (if you prefer rental ones) to best deal with leasing and changing locations from time to time.
- Harsh Conditions Capability
Our products triumph over overall harsh conditions, from -50° to 50°, including hurricanes, snow, and sand storms.
The real deal comes when these large billboards endanger nearby buildings and vicinities during bad weather conditions; however, the P8 outdoor LED screen has a unique design that surely can stand uncertain conditions outdoors.
- Energy-saving
P8 Outdoor LED Screen has high brightness, vivid color, high gray level, ensuring the best display effect. The maximum power consumption is 500W/square meter while the average is 200W/square meter, decreasing electricity consumption to the maximum extent and saving operation costs.
- Screen Replacement Plan
If either of the below three standards is lower than our guarantee within three years, we will replace a brand-new screen for you.
It will help if you trust only a reliable provider, such as YUCHIP, that has an excellent record to show and has excellent after-sales services.
- White balance & color consistency ≥80%
- Blindspot rate ≤3‰
- Brightness ≥4000 nits
P8 Outdoor LED Module Specification | |
| Pixel Pitch (mm) | 8 |
| Pixel Configuration | 1R1G1B |
| Encapsulation | 3 in 1 |
| Colors Matches | 6:3:1 |
| Module Resolution (pixels) | 40 x 40 |
| Module Pixel | 1600 |
| Module Size (mm) | 320 x 320 |
P8 Outdoor LED Cabinet Specification | |
| Cabinet Size (mm) | 960 x 960 x 150 |
| Cabinet Resolution (pixels) | 120 x 120 |
| Cabinet Pixels (pixels) | 14400 |
| Cabinet Material | Steel/ Die-casting Aluminum/ Aluminum |
| Cabinet Weight (kg) | 50 |
P8 Outdoor LED Display Specification | |
| Pixel Density (pixel/㎡) | 15625 |
| Brightness (cd/㎡) | ≥8000 (adjustable) |
| Brightness Adjusted | 100 grade by software or by auto-optic induced |
| View Angle | Horizontal 110°; Vertical 70° |
| Best Viewing Distance (m) | ≥7m |
| Communication Distance (m) | <100meter by Internet Cable (without relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display Work Method | 1/4 Scan |
| LED Driving Method | Constant driving current |
| Color Contrast Ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) |
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Control System | |
| Working Temperature (ºC) | -20～+60 |
| Stored Temperature (ºC) | -30～+80 |
| Operation Humidity (RH) | 0-95% |
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63Hz |
| Power Consumption | Max: 900W/㎡ ; Ave:400W/㎡ |
| Out of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |

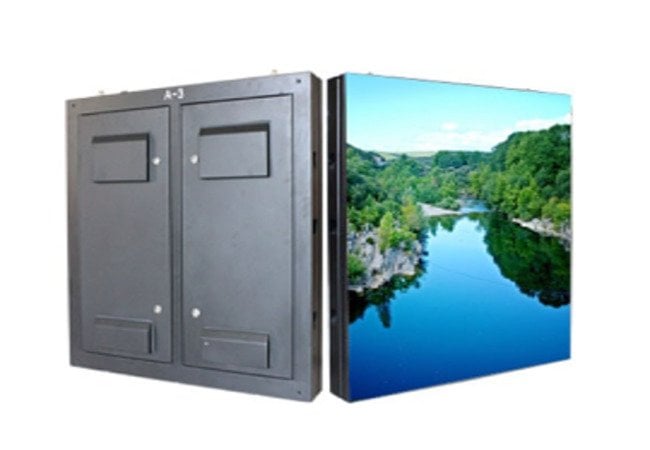

(P8 Outdoor LED Display Screen)
