- Super HD Picture Quality
P8 Outdoor Rental led screen with High resolution brings a delicate display effect, and it is a perfect embodiment of the new generation of ultra-high-definition LED display technology.
P8 Outdoor Rental LED Display
P8 Outdoor Rental LED Display is suitable for outdoor stage, promotional activities, concerts, and other makeshift accommodations.
- Product Features
- Parameters
- Related Videos

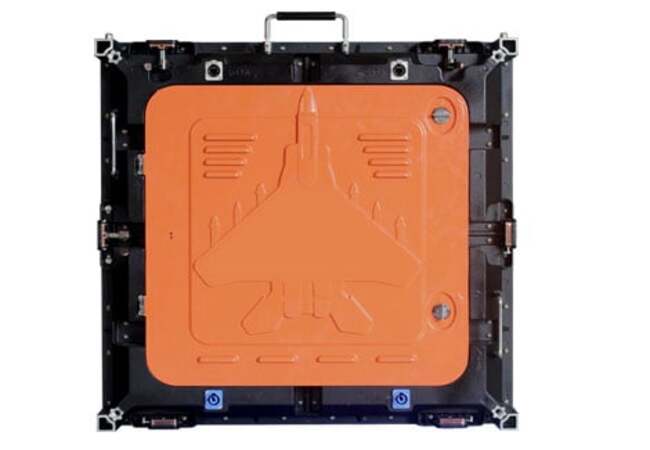

- Quick And Easy
You can do the installation in only five seconds; the fast lock is quick and easy installation. Maximum support can reach up to 50 pieces hanging in a column. With a tight lock design, you can quickly assemble cabinets in 5 seconds.
- Fast Installation In A Ceiling
Suitable for outdoor stage, promotional activities, concerts, and other makeshift accommodation.
- IP65 For Outdoor Use
Mainly for outdoor high resolution, the protection rate is IP65.
Our LED Display employs the HUB board of the LJGD LED Display series, YUCHIP researches and develops the HUB board of the LJGD series for indoor and outdoor LED Display use.
The whole module has an interface to connect the HUB board, with a short line, beautiful, low fault rate, and it is easy to maintain, saving the humans resource and cost of the stage organizers.
LED MODULE PARAMETER | |
| Pixel Pitch (mm) | 8 |
| Pixel Configuration | 1R1G1B |
| Encapsulation | 3 in 1 |
| Colors Matches | 6:3:1 |
| Module Resolution (pixels) | 40 x 40 |
| Module Pixel | 1600 |
| Module Size (mm) | 320 x 320 |
LED CABINET SPECIFICATION | |
| Cabinet Size (mm) | 960 x 960 x 150 |
| Cabinet Resolution (pixels) | 120 x 120 |
| Cabinet Pixels (pixels) | 14400 |
| Cabinet Material | Steel |
| Cabinet Weight (kg) | 50 |
LED DISPLAY SPECIFICATION | |
| Pixel Density (pixel/㎡) | 15625 |
| Brightness (cd/㎡) | ≥8000 (adjustable) |
| Brightness Adjusted | 100 grade by software or by auto-optic induced |
| View Angle | Horizontal 110°; Vertical 70° |
| Best Viewing Distance (m) | ≥7m |
| Communication Distance (m) | <100meter by Internet Cable (without relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km |
| Display Work Method | 1/4 Scan |
| LED Driving Method | Constant driving current |
| Color Contrast Ratio | 1800:1 |
| Gray Grade | 16bit |
| Display Color | 439, 804, 651, 110 |
| Refresh Frequency (Hz) | ≥1000 |
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control |
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through a video processor converting) |
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. |
| Front/Rear IP Level | IP65 |
| Working Temperature (ºC) | -20～+60 |
| Stored Temperature (ºC) | -30～+80 |
| Operation Humidity (RH) | 0-95% |
| Display Lifetime (hours) | Ten years or more (natural environment) 100000 hours (ideal environment) |
| Maintenance | Rear side |
| Working Voltage | AC110 / AC220V±10% 47～63Hz |
| Power Consumption | Max: 900W/㎡ ; Ave:400W/㎡ |
| Out of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) |
(P8 Outdoor Rental LED Display)
