P4 Curved LED Display
The P4 Curved LED Display, with either inward or outward curves, is a perfect choice for shopping mall advertising. It utilizes Nationstar LED that has high brightness and long service. This curved LED display also uses an LVP909 from VDWALL, a trusted video processor manufacturer.
YUCHIP is China’s Curved LED Display Manufacturer that has almost 17 years of experience in the industry. We have provided a massive number of displays, including curved ones, to nearly 105 countries in the world. And we can’t wait to provide help with your curved LED Display or P4 LED project.
Do you want to know more? Would you please leave us a message?
- P4 Curved LED Display Product Features
- Parameters
- Related Videos

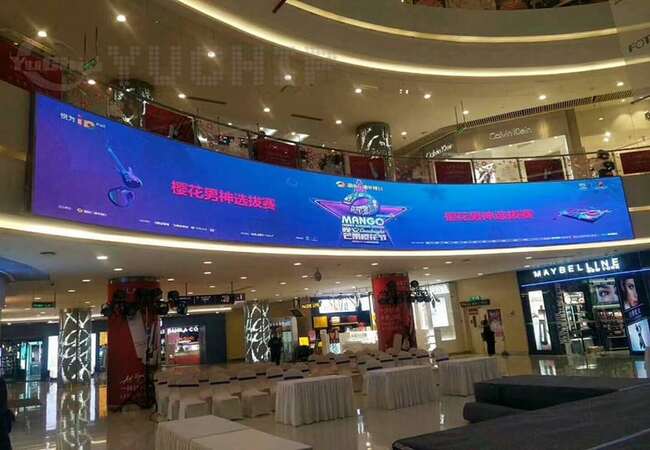

Mall displays give a more precise setup and atmosphere inside the vicinity, and shopping becomes even more exciting because of LED displays. A good example is using a curved LED display installed in a shopping mall, for instance.
As we all know, shopping malls are one of the most-visited and crowded places in cities and small areas. People undeniably love rooming around and buying exquisite items from their favorite brands and products.
With this kind of setup, the P4 curved LED display makes the best spot for advertising, leaving a more angular approach through entertaining content.
YUCHIP, a leading Curved LED Display Manufacturer, brings you another innovative series product with the following characteristics.
- Curved Properties
The curved LED display, given its name, has a good curvature design. You may choose an inward or outward curve, wavy style, spiral, or concave and convex to deliver the best creativity, art, and digital theme in the vicinity of your project.
The curved LED display module and cabinet are flexible enough to customize the shapes and curves easily.
- Quality Parts
All of our products use nothing but quality components from our partners in the industry. This P4 curved LED display, for instance, used an LVP909 from VDWALL, a video processor provider in China.
For the P4 LED lamp, we use Nationstar LED and Novastar, Linsn, LEDvision, LEDset for the control system and software.
- Front/Rear Service
The P4 LED maintenance may vary depending on the shape or curve it has. Another factor is the installation type, whether it is hanging or wall-mounted (fixed).
For inward and outward curves with hanging installation, both maintenances are available. However, for inward and outward wall-mounted curved LED displays, front service would be ideal and convenient.
- Sense Of Depth
Concave and convex curve enhances a depth view. The display can create an optical illusion that makes you feel either farther or nearer from the center of the screen. It makes viewing more exciting and appealing.
P4 Curved LED Module Specification | ||||||||||||||
| Pixel Pitch (mm) | 4 | |||||||||||||
| Pixel Configuration | SMD2121 | |||||||||||||
| Encapsulation | 3 in 1 | |||||||||||||
| Colors Matches | 6:3:1 | |||||||||||||
| Module Resolution (pixels) | 64 x 32 | 32 x 32 | ||||||||||||
| Module Pixel | 2048 | 1024 | ||||||||||||
| Module Size (mm) | 256 x 128 | 128 x 128 | ||||||||||||
P4 Curved LED Cabinet Specification | ||||||||||||||
| Cabinet Size (mm) | 512 x 512 and customized | |||||||||||||
| Cabinet Resolution | 128 x 128 | |||||||||||||
| Cabinet Pixels | 16384 | |||||||||||||
| Cabinet Material | Steel / Aluminum / Die casting aluminum | |||||||||||||
| Cabinet Weight (kg) | 9 / 8 / 7 | |||||||||||||
P4 Curved LED Screen Specification | ||||||||||||||
| Pixel Density（pixel/m²） | 62500 | |||||||||||||
| Brightness（cd/m²） | ≥1000 (adjustable) | |||||||||||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||||||||||
| View Angle | Horizontal 140°; Vertical 140° | |||||||||||||
| Best Viewing Distance (m) | ≥4m | |||||||||||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||||||||
| Display Work Method | 1/16 Scan | |||||||||||||
| LED Driving Method | Constant driving current | |||||||||||||
| Color Contrast Ratio | 3000:1 | |||||||||||||
| Gray Grade | 16bit | |||||||||||||
| Display Color | 439, 804, 651, 110 | |||||||||||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||||||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||||||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||||||||||
| Control System | ||||||||||||||
| Front/Rear IP Level | IP43 | |||||||||||||
| Working Temperature (ºC) | -20～+40 | |||||||||||||
| Stored temperature (ºC) | -40～+80 | |||||||||||||
| Operation Humidity (RH) | 0-95% | |||||||||||||
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) | |||||||||||||
| Maintenance | Rear / Front side | |||||||||||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||||||||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||||||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) | |||||||||||||
