P4 LED Panel In Shanghai
The P4 LED Panel In ShanghaiP4 LED Panel In Shanghai provides easy access for nightclubs organizers to set a more attractive display for enjoyment. The LED Screen in club may vary in size, pixel pitches, and placement. Based on the club’s available area, you may prefer a flat wall or a four-sided or double-sided one.
The LED screen in nightclub, such as the P4 LED Panel In Shanghai, has front maintenance features, supports image, animation play, Live Broadcast, etc. The indoor LED Screen is popular among hospitality venues such as nightclubs, bars, casinos, hotels, etc.
- DJ LED Wall Product Details
- Parameters
- Related Videos

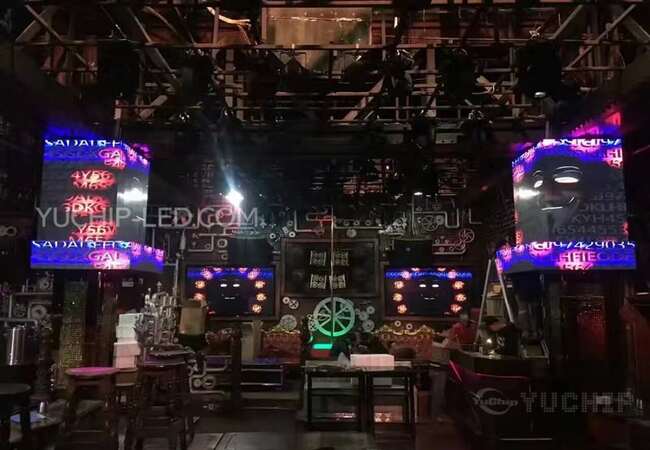

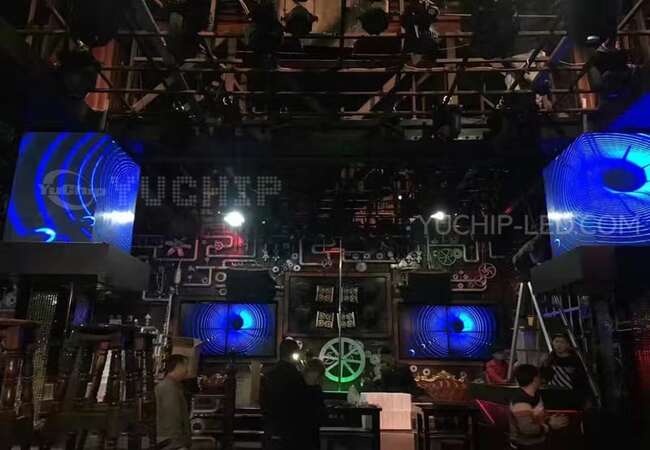

The P4 LED Panel In Shanghai is a club LED screen project from YUCHIP with a total size of 85 m².
Details:
- Front Maintenance LED Display.
- Mounted to steel structure by a magnet.
- Each screenplay can have the same or different content.
- It supports image, animation play, and Live Broadcast.
P4 LED panel is a popular, cost-effective indoor product, using SMD2121, horizontal and vertical viewing angle of 140, and you can adjust the brightness from 800 to 1600.
Since it has fixed installation, it utilizes front maintenance that you can do through the help of a special magnet that detaches the module from the cabinet, enabling you to see what needs to be checked inside.
While P4 Indoor is very popular among indoor series, we also have many more pixel pitch options for your indoor needs. We have P2, which works HD LED screen resolution; with its very low pixel, the image is as vivid as crystal, P3, P5, P6, and P8, all open for customization.
What Is A Nightclub LED Screen?
A nightclub LED Screen means a particular display designated for the club which is responsible for how fun and how upbeat the nightclub atmosphere will be. Through his choice of music and the DJ LED wall content joined together, people will significantly appreciate music and digital aesthetic.
LED Screen may come in various sizes, pixel pitches, resolutions, and installations. You may choose a hanging installation or a flat panel as your DJ’s background LED display.
Significantly, an ideal nightclub LED Wall uses P4 LED display such as the P4 LED Panel In Shanghai; however, you may also opt for a different pixel pitch and customize the size and installation. Our R&D team will help you comprehensively choose the best screen panel for your nightclub, bar, or casino.
P4 LED Screen in Shanghai Module Specification | ||||||||||||||
| Pixel Pitch (mm) | 4 | |||||||||||||
| Pixel Configuration | SMD2121 | |||||||||||||
| Encapsulation | 3 in 1 | |||||||||||||
| Colors Matches | 6:3:1 | |||||||||||||
| Module Resolution (pixels) | 64 x 32 | 32 x 32 | ||||||||||||
| Module Pixel | 2048 | 1024 | ||||||||||||
| Module Size (mm) | 256 x 128 | 128 x 128 | ||||||||||||
DJ LED Wall Cabinet Specification | ||||||||||||||
| Cabinet Size (mm) | 512 x 512 and customized | |||||||||||||
| Cabinet Resolution | 128 x 128 | |||||||||||||
| Cabinet Pixels | 16384 | |||||||||||||
| Cabinet Material | Steel / Aluminum / Die casting aluminum | |||||||||||||
| Cabinet Weight (kg) | 9 / 8 / 7 | |||||||||||||
DJ LED Wall Screen Specification | ||||||||||||||
| Pixel Density（pixel/m²） | 62500 | |||||||||||||
| Brightness（cd/m²） | ≥1000 (adjustable) | |||||||||||||
| Brightness Adjusted | 256 grade by software or by Auto-optic induced | |||||||||||||
| View Angle | Horizontal 140°; Vertical 140° | |||||||||||||
| Best Viewing Distance (m) | ≥4m | |||||||||||||
| Communication Distance（m） | <100meter by Internet Cable（without Relay; Multimode fiber cable ＜ 500m; Single-mode fiber cable ＜ 20km | |||||||||||||
| Display Work Method | 1/16 Scan | |||||||||||||
| LED Driving Method | Constant driving current | |||||||||||||
| Color Contrast Ratio | 3000:1 | |||||||||||||
| Gray Grade | 16bit | |||||||||||||
| Display Color | 439, 804, 651, 110 | |||||||||||||
| Refresh Frequency (Hz) | ≥1920, ≥3840 Optional | |||||||||||||
| Picture Display Method | Intellective control technology, test-itself technology, correct technology, Synchronization Control | |||||||||||||
| Input Signal | DVI (S-VIDEO, CVBS, DP, HDMI, VGA, PAL/NTSC, etc. through Video processor converting) | |||||||||||||
| System Operating | WINDOWS 98, WINDOWS 2000, WINDOWS XP,WINDOWS 7 etc. | |||||||||||||
| Control System | ||||||||||||||
| Front/Rear IP Level | IP43 | |||||||||||||
| Working Temperature (ºC) | -20～+40 | |||||||||||||
| Stored temperature (ºC) | -40～+80 | |||||||||||||
| Operation Humidity (RH) | 0-95% | |||||||||||||
| Display Lifetime (hours) | 10 years or more (natural environment) 100000 hours (ideal environment) | |||||||||||||
| Maintenance | Rear / Front side | |||||||||||||
| Working Voltage | AC110 / AC220V±10% 47～63HZ | |||||||||||||
| Power Consumption | Max: 700W/㎡ ; Ave:250W/㎡ | |||||||||||||
| Out Of Controlled Dot | ≤3/10,000 (Out of controlled dots means the pixels of which the brightness and the wavelength are both >10% depart to the normal one) | |||||||||||||
(P4 Fixed Indoor Advertising LED Video Wall)
