Tessera SX40


The Tessera SX40 LED processor combines Tessera’s industry-leading feature set and easy-to-use software interface. It is considered the highest-ever capacity processor. Its outstanding features include HDR, Dynamic Calibration, Ultra-low Latency, HFR+ (High Frame Rate), Frame Remapping Sguttersync, and 3D LUT import.

The Tessera SX40 also supports latency-free 4K up/down scaling and provides a cost-effective and robust system for supporting big and bold LED screen projects. It is also an effective solution for XR LED screens typically used in filming, TV shows, and other applications.

Furthermore, below are more related information about the Tessera SX40 LED processor. Should you have more questions, please let us know by sending us your concerns at manager@yuchip.com




  1. What Is The Tessera SX40?

The Tessera SX40 LED processor combines Tessera’s industry-leading feature set and easy-to-use software interface. It is considered the highest-ever capacity processor.

Its outstanding features include HDR, Dynamic Calibration, Ultra-low Latency, HFR+ (High Frame Rate), Frame Remapping Sguttersync, and 3D LUT import. The Tessera SX40 LED processor supports On-screen Color Adjustment (OSCA) for seam corrections, Dark Magic for dark-area detail, and ChromaTune for color control.

It is available in a standard 2U rack form with a total output capacity of 9 million pixels. It also supports 4K LED walls at up to 60 Hz with a 12-bit color depth.

The Tessera SX40 also supports latency-free 4K up/down scaling and provides a cost-effective and robust system for supporting big and bold LED screen projects. It also supports Power Redundancy, in which if the problem occurs with the video or input or output, the backup processor can configure it in a few seconds and take over the trouble without closed-loop redundancy.

  1. What Are Its Features?

Below are the features of the Tessera SX40 LED Processor.

  • XD Distribution Unit

The Tessera XD data distribution units are a solution designed to manage the needs for mass cabling in cases of large LED displays.

You may also check this link for further information.

  • Ultra-low Latency

Having an ultra-low latency device helps the LED screen performance in many ways. This function provides a latency-minimizing solution for the broadcast, television, and film industries. It makes it easier to synchronize live-action with visual effects and more.

The Tessera SX40 LED processor already has an industry-leading two frames end-to-end latency.

  • High Frame Rate+

HFR+ gives you the power to play video content on an LED screen at up to 250 fps (frames per second). A higher frame rate of an LED processor gives smoother visuals in eSports and simulator applications.

  • HDR

It supports and handles HDR content automatically. The system switches seamlessly between SDR, PQ, and HLG without interruptions. HDR is beautifully supported at all resolutions and frame rates in both of the commonly used HDR formats (PQ (ST-2084) and HLG).

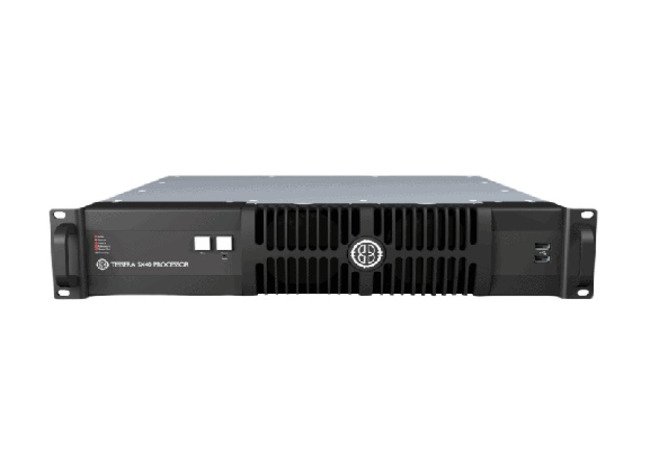

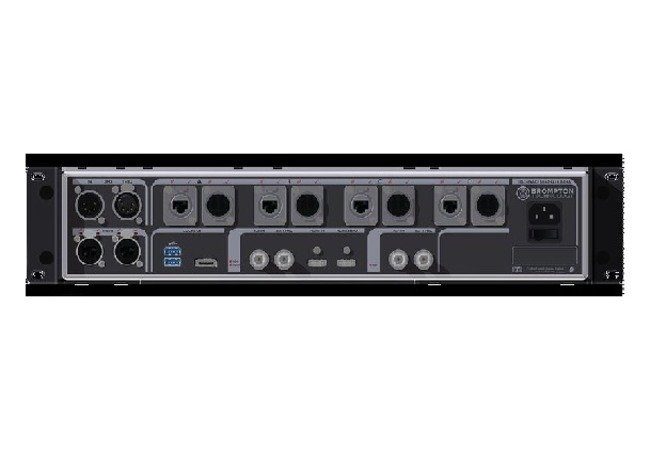

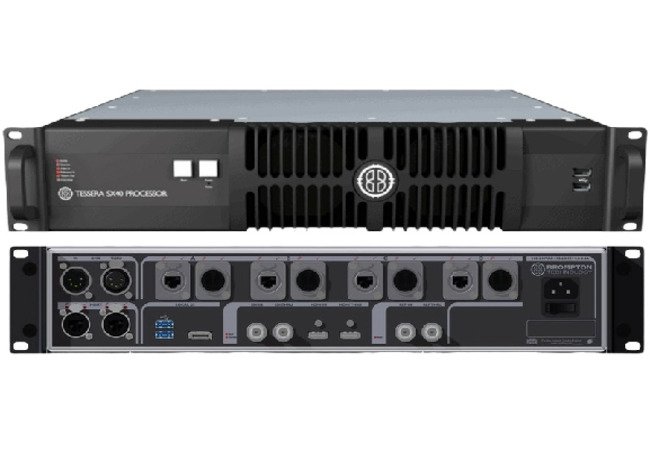

Tessera SX40 Appearance
Tessera SX40

Tessera SX40 Specifications

Physical (WxHxL) Unboxed

482.6 mm (19”) x 88.9 mm (3.5”) x 406.4 mm (16”)

Read width: 431.8 mm (17”)

Boxed

550 mm (21.65”) x 220 mm (8.66”) x 520 mm (20.5”)

Weight Unboxed

7.50Kg (16.53lbs)

Boxed

10Kg (22lbs)

Electrical

Switched auto-ranging power supply

100 – 240V AC

50Hz – 60Hz

1.2 – 0.6A

HDMI 2.0B Input

One HDMI 2.0 input

Full 18Gbps HDMI 2.0 bandwidth, maximum 600MHz pixel clock

Up to 4096 x 2160 resolution (progressive only)

23.98Hz to 250Hz frame rate

8,10, and 12 bits per channel color depths

RGB and YCbCr 4:4:4, 4:2:2 and 4:2:0

Compatible with DVI-D and DisplayPort sources via adapters

SDI Input & Re-clocked Thru Port One 12G SDI input supports the following:

  1. HD-SDI – ST-292
  2. 3G-SDI – ST-424, Level A and Level B-DL
  3. 6G-SDI – ST-2081
  4. 12G-SDI – ST-2082, 2SI format

Up to 4096 x 2160 resolution (progressive only)

23.98Hz to 60Hz frame rate

10 bits per channel color depth

YCbCr 4:2:2

Outputs

Four 10GBASE-T copper output ports

Support nominally 9 million pixels at 36 bits per pixel @ 60Hz

Supports Neutrik etherCON Cat 6A / etherCON (CAT5e) connectors

Compatible with standard Cat6A / Cat5e RJ45 connectors

Requires Cat6A cable (up to 60m) or Cat5e cable (up to 30m)

Four 10GBASE-LR Tessera XD fiber output ports

Support Neutrik opticalCON DUO / DUO ARMORED / DUO X-TREME / DUO LITE connectors.

Compatible with standard LC-Duplex connectors.

Requires 1310nm, 9/125um single-mode fiber (up to 2KM) with PC or UPC connectors.

Each 10G output independently auto-switches between fiber and copper

Closed-loop redundancy support

Processor redundancy support

Genlock

Bi-level and Tri-level sync

Sync to source

Processors genlock from the source right through to panel refresh

Frame rates from 23.98 to 60Hz

Latency

Two frames of end-to-end system latency (all features)

Tessera Management Software

Local management using monitor, keyboard, and mouse connected directly to the processor

Up to 3840×2160 local monitor resolution supported; minimum 1920×1080 recommended

Tessera Remote

Available free for Windows PC and Mac OS

Remote management using Windows PC or Mac connected to the processor via Ethernet network

Two Gigabit Ethernet management network ports

Remote Control Support for eDMX protocols:

  1. Art-net
  2. Streaming ACN

DMX-512A on 5-pin XLR in and thru

Tessera Control application for multi-processor control via management network ports

IP Control

I/O

It has two USB 2.0 ports on the front and two USB 3.0 ports on the rear.

One DisplayPort (DP++) monitor output supporting HDMI, DVI, and VGA with an adapter

Front Panel

It has six status LEDs; Power LED, freeze, and blackout buttons

Warranty

Two years

Certifications

CE, ETL/cETL
