An LED mesh display is a large LED screen built with a grid-like structure that leaves space between LED nodes. Unlike traditional solid LED screens, a mesh LED screen allows air and light to pass through the display while still delivering bright video content.
Because of its lightweight and transparent design, they are widely used on building facades, skyscrapers, and large outdoor media installations. They make it possible to turn entire buildings into digital advertising surfaces without blocking windows or increasing wind load.
In this guide, you will learn how LED mesh displays work, why architects prefer them for large buildings, and how they compare with LED curtain and grille displays.
Why LED Mesh Displays Were Created
To understand the purpose of a mesh LED display, it helps to first look at the challenges of installing traditional LED screens on large buildings.
A conventional outdoor LED display uses solid cabinets that completely block airflow and light. While this works well for billboards or stadium screens, it creates several serious problems when installed on tall buildings.
Weight and Structural Load
Traditional LED walls can weigh 40–60 kg per square meter or more. When you install thousands of square meters of LED screens on a building facade, the total weight becomes extremely high.
Many buildings cannot support that kind of load without major structural reinforcement.
Wind Resistance
Tall buildings face strong wind pressure, especially in coastal cities or high-rise districts. A solid LED wall behaves like a giant sail that catches wind.
This wind load can damage the structure or require heavy steel support systems.
Blocking Natural Light
Buildings often have windows or glass curtain walls. Installing a solid LED screen would completely block sunlight and views from inside the building.
This problem makes traditional LED displays unsuitable for many architectural projects.
Ventilation Issues
Buildings need proper airflow to maintain temperature and ventilation. A large solid screen can trap heat and reduce airflow around the building facade.
The Solution: Mesh LED Displays
Engineers developed LED mesh displays specifically to solve the architectural challenges of installing large LED screens on buildings.
A mesh LED screen uses a grid structure with space between LED pixels. This open design allows air and light to pass through the display while still producing bright digital content visible from long viewing distances.
Compared with traditional outdoor LED screens, mesh LED displays offer several measurable advantages:
- Much lower weight
A mesh LED display can reduce structural weight by 50–70% compared with conventional LED cabinets, making it easier to install on large building facades.
- Reduced wind resistance
The open grid structure allows wind to pass through the screen, which can lower wind load by around 40–60% compared with solid LED walls.
- High transparency
Depending on the pixel pitch and design, LED mesh screens typically provide 30–70% transparency, allowing natural light and visibility through the building facade.
- Faster installation
Because mesh LED modules are lightweight and modular, installation time can be 30–50% faster than traditional outdoor LED screens in large projects.
Because of these advantages, LED mesh displays have become a preferred technology for media facades, skyscraper advertising, and large architectural lighting projects around the world. In many large projects, mesh LED displays can cover hundreds or even thousands of square meters while still maintaining low structural load on the building.
What an LED Mesh Display Actually Looks Like
Unlike traditional LED panels, a mesh LED display does not form a solid surface.
Instead, it consists of horizontal or vertical LED strips connected in a grid pattern. LED nodes sit along these strips at specific intervals depending on the pixel pitch.
This structure creates visible gaps between LEDs when viewed up close.
However, when people view the screen from a distance, the human eye blends the light points together and sees a complete image or video.
Most mesh LED displays include several key components:
- aluminum frame structure
- LED strip modules or nodes
- power and signal cables
- mounting brackets for building installation
Because the modules remain lightweight and flexible, installers can cover very large surfaces, including curved or irregular building facades.
How LED Mesh Displays Work
Although the physical structure looks different, the basic operating principle of an LED mesh display remains similar to other LED screens.
Each LED node acts as a tiny pixel that emits red, green, and blue light. A control system sends signals to these nodes to create images, animations, or videos.
The system usually includes three main elements.
LED Modules
LED nodes or strips form the visible display surface. The spacing between these nodes determines the pixel pitch, which affects image resolution.
Common pixel pitches for mesh LED screens include:
- P10
- P16
- P20
- 25
Larger pixel pitches work well for viewing distances of tens or hundreds of meters.
Control System
A sending card and receiving cards manage video signals and synchronize content across the entire screen. The control system ensures that all modules display the correct image at the same time.
Power Distribution
Large mesh LED displays require stable power distribution across many modules. Engineers often design the system to maintain consistent brightness and performance across the entire installation.
Even though mesh LED displays contain fewer LEDs than solid screens, they can still produce high brightness levels suitable for outdoor environments.
LED Mesh vs LED Curtain vs LED Grille: What’s the Difference?
Many people confuse LED mesh displays, LED curtain displays, and LED grille displays because all three use transparent or semi-transparent structures. At first glance, they can look very similar, especially when installed on large buildings.
However, these LED display technologies are designed for different installation environments and structural requirements. Understanding the differences can help project planners choose the right solution.
| Display Type | Structure | Transparency | Typical Applications |
| LED Mesh Display | Grid-like mesh structure with evenly spaced LED nodes | High (30–70%) | Building facades, media architecture, skyscraper advertising |
| LED Curtain Display | Flexible vertical LED strips that hang like a curtain | Very high (50–80%) | Stage backgrounds, creative architecture, temporary displays |
| LED Grille Display | Rigid aluminum bars with integrated LED modules | Medium (20–40%) | Outdoor advertising screens, stadium displays |
LED Mesh Display
An LED mesh display uses a grid-style structure that spreads LED nodes across horizontal and vertical supports. This design balances transparency, structural strength, and image quality.
Because of its lightweight design and wind resistance, mesh LED displays are widely used for large building facades and media architecture projects. They allow architects to install massive LED screens while maintaining airflow and visibility through the building surface.
LED Curtain Display
An LED curtain display consists of vertical LED strips connected by cables. The strips hang loosely, similar to a curtain, which creates extremely high transparency.
These displays are commonly used for stage backdrops, concerts, and creative lighting installations where flexibility and visual effects are more important than structural strength.
LED Grille Display
An LED grille display uses rigid aluminum bars to hold LED modules. Compared with mesh displays, grille LED screens usually have a stronger frame but slightly lower transparency.
They are often used for large outdoor advertising screens, stadium displays, and fixed LED billboards where durability and brightness are key requirements.
In general:
- Choose LED mesh displays for building facades and media architecture.
- Choose LED curtain displays for stage or temporary installations.
- Choose LED grille displays for rigid outdoor advertising structures.
Where LED Mesh Displays Are Used
Because of their lightweight structure and high transparency, they are widely used in large architectural and outdoor projects where traditional LED screens are too heavy or block airflow.

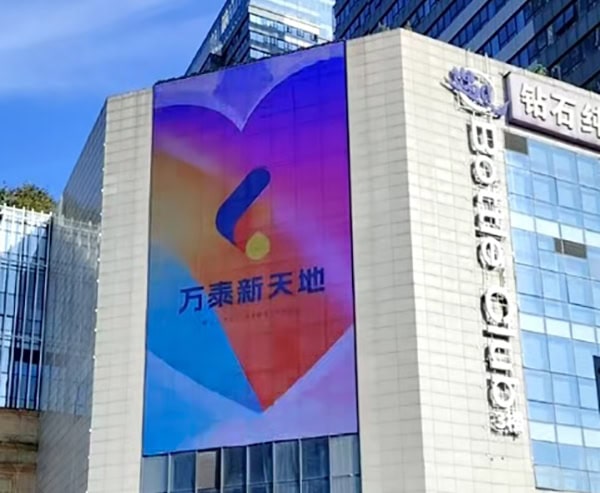

The most common application is building facade LED displays, where mesh LED screens transform entire building exteriors into dynamic digital surfaces without affecting natural light or ventilation.
They are also widely used in media facade architecture, allowing buildings to function as large-scale visual displays. Cities such as Shanghai and Dubai feature many landmark projects using mesh LED technology.
In addition, mesh LED displays are popular for skyscraper advertising screens and shopping mall exteriors, where large-format digital content can be viewed from long distances while maintaining the building’s original design.
They are often used in landmark installations and city events, creating eye-catching visual experiences on a massive scale.
When Should You Choose an LED Mesh Display?
Not every LED project requires a mesh screen. However, mesh LED displays are often the best choice in several situations.
You should consider a mesh LED display if:
- the screen will be installed on a building facade
- the installation area is very large
- airflow and transparency are important
- the building structure cannot support heavy displays
- the project involves architectural media facades
For smaller indoor screens or close viewing distances, other LED display types may provide better resolution.
How to Choose the Right LED Mesh Display
Choosing the right LED mesh display depends on several factors, including pixel pitch, screen size, and the installation environment. These elements directly affect image quality, viewing experience, and the overall performance of the display.
Pixel Pitch and Viewing Distance
Pixel pitch determines the resolution of the mesh LED screen and the recommended viewing distance.
For most architectural LED mesh projects:

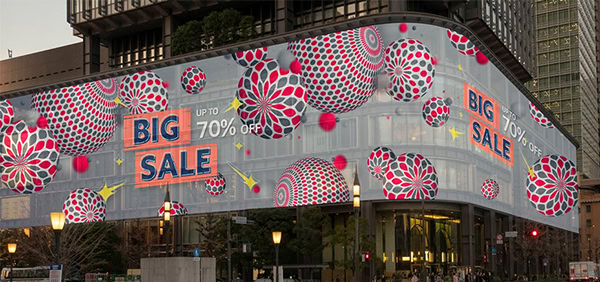

- P10–P16 works well for medium viewing distances, such as shopping malls or commercial buildings.
- P20–P31 is often used for skyscrapers or large outdoor displays where viewers are much farther away.
For example, a mesh LED display installed on a high-rise building facing a city street can usually use a larger pixel pitch like P20, since people will view the screen from a distance. In contrast, displays installed on shopping mall facades may require a smaller pixel pitch to maintain image clarity for nearby viewers.
Screen Size and Structural Design
Many mesh LED display projects cover hundreds or even thousands of square meters, especially when used for building facades or media architecture.
Because of their lightweight structure, mesh LED screens place less load on the building compared with traditional outdoor LED cabinets. This makes them suitable for large installations where structural weight and wind resistance must be carefully considered.
Working with an experienced LED display manufacturer can help ensure that the mounting structure and system design match the scale of the project.
Installation Environment
The installation environment also affects the type of mesh LED display required.
Outdoor displays must operate reliably under different weather conditions, including rain, strong wind, and temperature changes. For example, displays installed on coastal buildings or tall skyscrapers need stronger structural support and weather-resistant materials.
Considering these environmental factors early in the project helps ensure stable performance and longer service life for the LED mesh display.
By considering viewing distance, screen size, and installation conditions, project planners can select a mesh LED display that delivers the best balance between visual performance and structural safety.
Conclusion
An LED mesh display is designed specifically for large architectural installations where traditional LED screens are too heavy or block too much airflow and light.
Thanks to its lightweight grid structure, a mesh LED screen can deliver bright digital content while maintaining high transparency and low wind resistance.
Because of these advantages, they are now widely used for media facades, large building advertising, and creative architectural lighting projects around the world.
If you are planning a large outdoor LED project or building media facade, choosing the right mesh LED display solution can make a significant difference in installation efficiency and long-term performance.
FAQs
1.Why are LED mesh displays transparent?
LED mesh displays use spaced LED nodes arranged in a grid structure. The gaps between these nodes allow light and air to pass through the screen, creating transparency.
2.Can LED mesh displays be installed on glass buildings?
Yes. Many projects install mesh LED screens on glass curtain wall buildings because the transparent structure reduces the impact on natural lighting.
3.What is the difference between LED mesh and transparent LED displays?
Transparent LED displays typically use clear panels for indoor windows or retail spaces, while mesh LED displays use a grid structure designed mainly for large outdoor building facades.
4.How large can a mesh LED display be?
Mesh LED displays can cover thousands of square meters. Some media facade projects span the entire exterior surface of high-rise buildings.
