What Is A Transparent LED Screen And How Does It Work?

What is a transparent LED screen?

A transparent LED screen is a display technology that lets light pass through. It consist of LED panels with a grid layout that allows viewers to look through the screen while simultaneously displaying images or videos. LED transparent displays are made of LED panels with a high transparency rate, usually between 70% and 95%. These screens are lightweight, energy-efficient, and versatile, making them an excellent choice for various applications.

Transparent LED displays are an improved version of traditional LED displays. It is a display technique that uses transparent materials to produce bright, vivid images. As a result, it attracts the audience with the most appealing content. This technology is often used in applications where maintaining visibility through the screen is necessary, such as storefronts, stage performances, exhibitions, and architectural installations.

What are the types of transparent LED screens?

Transparent LED displays are a unique way to add life to any area. Many transparent LED screens offer a wide range of applications.

SMD (Surface-Mounted Device) Transparent LED Screens

These screens use SMD LED technology, where LEDs are mounted onto the surface of the PCB (Printed Circuit Board). SMD LEDs are smaller and more densely packed, allowing for higher-resolution displays. These screens offer good transparency and are suitable for indoor applications like retail stores, museums, and exhibitions.

  • Direct-lit LED Transparent Screen

In a Direct-lit LED Transparent Screen, the LEDs are placed directly behind the display surface (usually glass or acrylic). The LEDs emit light directly towards the viewer, providing a direct line of sight to the light source. This setup typically results in higher brightness and better visibility, especially in environments with high ambient light.

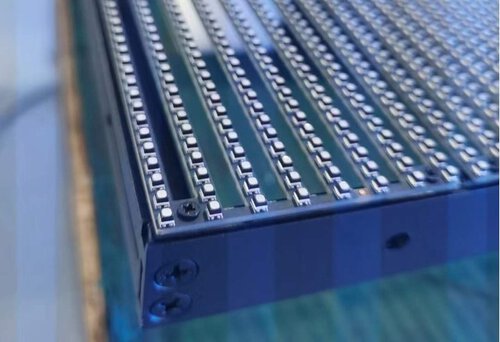

Direct-lit LED transparent screen

Direct-lit LED Transparent Screen

  • Edge-lit LED Transparent Screen

In an Edge-lit LED Transparent Screen, the LEDs are positioned along the edges of the display panel. Light emitted from these edge-mounted LEDs is directed into the transparent substrate (glass or acrylic), where it is dispersed and diffused across the display surface. The light spreads evenly across the screen, illuminating the content displayed. Edge-lit screens may offer advantages in terms of uniformity and energy efficiency, as they distribute light more evenly and may require fewer LEDs compared to direct emission screens.

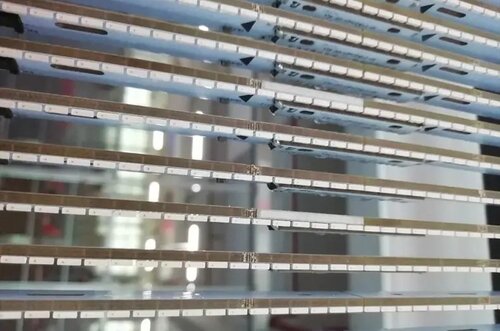

Edge-lit LED Transparent Screen

Edge-lit LED Transparent Screen

Nanocrystal LED (NLED) Transparent Screens

NLED technology utilizes nanocrystals to produce vibrant colors with high efficiency. These screens offer excellent transparency and color reproduction, making them suitable for high-end applications such as museums, galleries, and corporate installations.

  • Transparent LED Film Screen

Transparent LED film screens consist of a thin and flexible film embedded with LED components. The film is typically made of materials like PET (Polyethylene Terephthalate) or similar substrates, which are lightweight and can conform to curved or irregular surfaces. These screens offer high transparency, allowing viewers to see through the display when it’s not actively showing content.

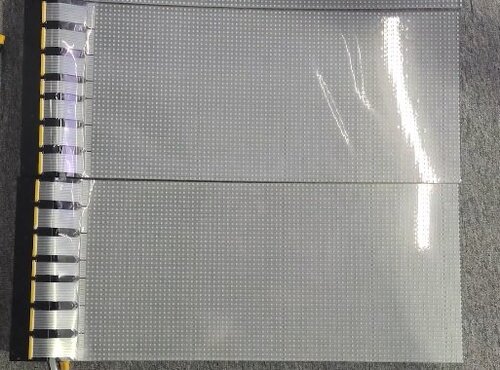

transparent LED film screen

Transparent LED Film Screen

  • Transparent LED Crystal Film Screen

Transparent LED crystal film screens are similar to transparent LED film screens but feature a crystal-like structure within the film material. This crystal-like structure enhances the visual appeal and aesthetics of the screen, giving it a more luxurious and sophisticated appearance. They are often used in upscale environments where aesthetics are a priority, such as high-end retail stores, luxury boutiques, and architectural installations.

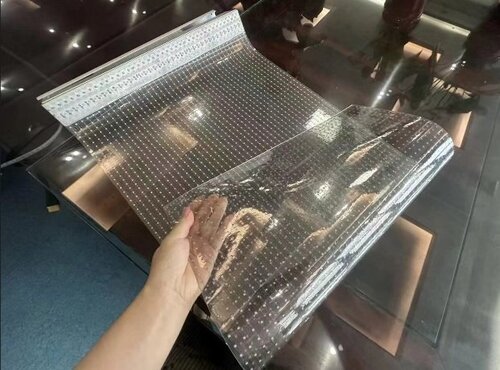

transparent LED crystal film screen

Transparent LED Crystal Film Screen

Mesh Transparent LED Screens

Mesh LED screens consist of a grid-like structure made of LED modules with gaps between them, allowing for high transparency. These screens are lightweight and flexible, making them suitable for creative installations, stage backgrounds, and architectural applications.

Each type of LED transparent screen has its advantages and limitations, and the choice depends on factors such as the application, budget, desired transparency, resolution, and environmental conditions.

Whats the structure of LED transparent screen?

The structure of a transparent LED display typically consists of several key components:

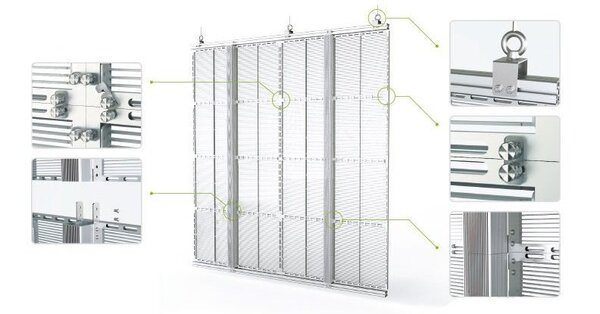

Structure of Transparent LED Screen

Structure of Transparent LED Display

LED Modules/LED Arrays: These are the basic building blocks of the LED transparent screen. LED modules or arrays contain numerous individual LED chips arranged in a grid pattern.

Transparent Substrate: The LED modules are embedded or mounted onto a transparent substrate, which is usually made of materials like glass or transparent plastic. The transparent substrate allows light to pass through, maintaining the screen’s transparency.

Mounting Frame: A mounting frame or support structure is used to hold the transparent LED display in place. The frame must be sturdy enough to support the weight of the screen and ensure proper installation. It may also include mechanisms for adjusting the angle or position of the screen if necessary.

Power Supply: LED transparent screens require a power supply to provide electricity to the LED modules and control circuitry. The power supply unit converts the incoming electrical power into the appropriate voltage and current required by the LEDs.

Control Circuitry: The control circuitry consists of various electronic components and microprocessors responsible for receiving input signals (such as video or image data) and controlling the operation of the LED modules. The control circuitry ensures precise control over the brightness and color of each LED chip to display the desired content accurately.

Optional Components: Depending on the specific design and features of the transparent LED display, additional components such as cooling systems (to dissipate heat generated by the LEDs), sensors (for brightness or temperature monitoring), and protective coatings (to enhance durability and resistance to environmental factors) may be included.

How does transparent LED screen work?

The LED transparent screen (Transparent LED Display) is a type of display screen with transparency, whose operation principle is mainly based on the combination of LED (Light Emitting Diode) technology and transparent materials.

The core part of the LED transparent screen consists of numerous tiny LED arrays. These LED arrays are embedded into transparent materials such as glass or plastic. Each LED array contains LED chips of the three basic colors: red, green, and blue, which can emit light independently.

When the LED transparent screen receives signals from the image source, the control circuit precisely controls each LED array. By adjusting the brightness and color of the LED chips of the three colors (red, green, and blue) in each LED array, the LED transparent screen can display various images and videos.

The reason for the transparency of the LED transparent screen lies in the use of transparent materials as the display medium. These transparent materials allow light to pass through the screen, while the LED arrays can also emit light. Thus, when viewing the LED transparent display, people can see objects behind the screen, seeing the images or videos displayed on the screen.

The operation principle of the LED transparent display is achieved by controlling the brightness and color of the LED chips in the LED arrays, as well as using transparent materials as the display medium, thereby simultaneously possessing transparency and display functions.

What are the benefits of using a transparent LED screen or sign?

Enhanced VisibilityCompared to conventional opaque signage, transparent screens, and signs are far more apparent. So they can be seen farther away. They are ideal for usage in places with plenty of traffic.
Reduced Environmental EffectCompared to conventional signage, transparent displays have a significantly smaller environmental impact. They respect the environment.
AestheticsTransparent screens can be aesthetically pleasing, as they blend with the environment and don’t obstruct the view.
Enhanced InvolvementFor being extremely engaging, transparent displays and signs can draw in onlookers and drive them to pause and pay attention.
Creative ApplicationsThey enable creative display setups, such as integrating digital content with real-life objects or environments.
Brand PromotionFor storefronts, transparent LED screens provide an innovative way to showcase products and promotions while still allowing customers to see inside the store.
Lower Maintenance CostsIn the long term, transparent screens save you time and money because they require little maintenance.
Reduced Power ConsumptionTransparent screens consume far less energy than traditional signage. In the long term, they can save you money.
Easily InstalledQuick and simple installation is possible for all of our transparent LED screen and digital signage solutions, whether it is installed permanently or temporarily.

How to choose the right transparent LED display?

To make sure you can get the most out of your wall LED tiles, you want to make sure that you take a few things into account before making a purchase. Therefore, you may want to go over some of these key points with your LED screen supplier before making a purchase:

Screen Size & Resolution

The first thing to do is to decide the transparent LED display size you want. As previously mentioned, transparent LED displays come in a variety of sizes. Thus, take care to choose one that fulfills your needs. It also applies to the resolution of your screen. Selecting the appropriate resolution is essential if you want to guarantee maximum visibility everywhere.

Maintenance Accessibility

When it comes time to maintain an LED transparent screen, you may find it a little difficult to reach. When the screen is incorporated into an architectural structure, this problem gets much worse. Therefore, while designing and installing your screen, give ease of access a top priority to make sure you can maintain yours when the time comes.

Content Visibility

The visibility of your material may vary depending on where you put the screen and several other factors. For this reason, you should think about the environment and potential methods to optimize your content design once again to make sure that visibility can be optimized everywhere.

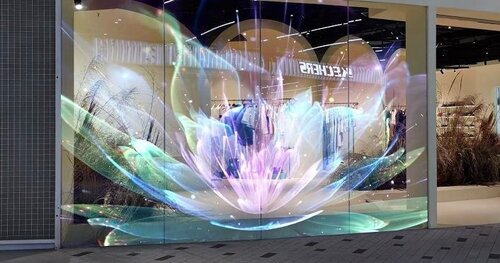

Transparent LED Display

Transparent LED Display

Environmental Factors

If you’re going to install your transparent LED display outside, it must be weather-resistant, including snow, rain, and temperature. Weatherproofing is essential here, and you must ensure it.

Cost

It should come as no surprise that transparent LED displays are typically more expensive than regular LEDs. Of course, considering the benefits that these screens provide, it’s easy to see why. You may still manage costs by completing a thorough cost-benefit analysis to verify that you are receiving the most value for your money.

Content Management

Every LED transparent screen need a content management system to schedule and manage the shown content. Make sure the content management system (CMS) you select is easy to use and enables you to effectively develop and manage your content.

Customization

You may have to pay extra and wait a little longer for the screen if you want a custom transparent LED display that meets your specifications. Still, don’t hesitate to get in touch with the producers to make sure your personalized display really fulfills your requirements.

What are the differences? Transparent LED Screen vs. Traditional LED Screen

Transparent LED displays are constructed from high-quality materials, including glass or acrylic, in contrast with traditional LED screens, which have opaque back panels. Light can travel through the screen thanks to its design, creating a see-through effect that can be both visually appealing and quite useful for a variety of applications.

Transparent LED ScreenTraditional LED Screen
Design and AppearanceThey typically consist of LED panels with a high transparency rate, allowing viewers to see through the screen to objects behind it.They consist of LED modules or panels tightly packed together to form a solid display surface.
ReliabilityMore durable, unaffected by heat or dust accumulation.Vulnerable to dust collection and heat damage.
Aesthetic FactorsSleek, modern design that complements the surrounding environment.Appear larger, and more invasive.
CostMore expensive than traditional LED screens due to the complexity of their design and manufacturing process.More cost-effective compared to transparent LED displays, making them a more common choice for many applications.

In summary, while both transparent LED screens and traditional LED screens offer high-quality display solutions, their differences in design, visibility, application, installation, maintenance, and cost make each suitable for specific use cases and environments.

Future trends and developments in transparent LED displays

With the advancement of science and technology, as well as increased market demand, the future market prospects for LED transparent screens will be more diverse and extensive. The LED transparent display market is expected to grow significantly in the future, adding value and improving our quality of life and working conditions. The future trends and developments of transparent LED displays are likely to focus on several key areas, including:

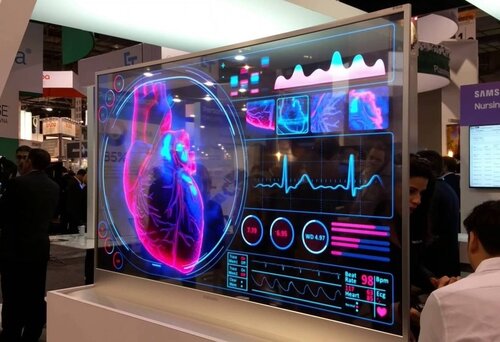

future trends of transparent led screen

Improved Transparency

Manufacturers will likely continue to innovate to enhance the transparency of LED screens, allowing for even clearer views through the display while maintaining high image quality.

Increased Resolution

Advancements in LED technology may lead to higher pixel densities and resolutions, resulting in sharper and more detailed images on transparent screens.

Flexible and Curved Displays

We all know that there are flexible LED screens now. But imagine that the future transparent LED displays may become even more flexible and capable of being curved or shaped to fit various architectural or design requirements. This flexibility would enable new creative applications and immersive experiences.

Interactive Features

Integration of touch-sensitive and interactive capabilities into transparent LED displays could open up new possibilities for user engagement and interactive experiences in retail, museums, exhibitions, and other settings.

Integration with Augmented Reality (AR) and Mixed Reality (MR)

Transparent LED displays could play a significant role in AR and MR applications by overlaying digital content onto the physical environment. This integration could revolutionize fields such as gaming, education, training, and entertainment.

Energy Efficiency and Sustainability

Continued efforts to improve energy efficiency and reduce environmental impact will likely drive developments in LED transparent screen technology. This could involve advancements in power-saving features, materials, and manufacturing processes.

Integration with IoT and Smart Systems

Transparent LED displays may become part of interconnected smart systems, allowing for seamless integration with IoT devices, data analytics, and automation to deliver personalized and context-aware content.

Overall, the future of transparent LED displays holds exciting potential for transforming how information is displayed and experienced in various environments, from retail and advertising to entertainment and beyond. Continued innovation and advancements in technology will drive the evolution of these displays, unlocking new possibilities for creative expression and engagement.
