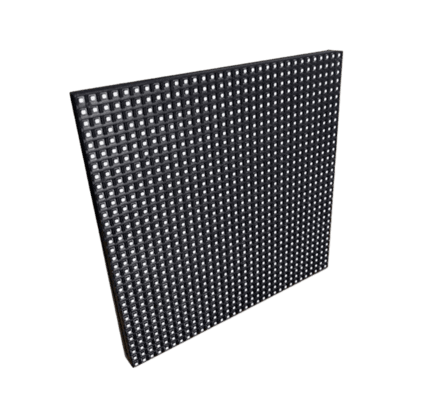

1. Introduction

The difference between P6 And P10 LEDs is that P6 LED has 1600 module pixels and a module size of 240 x 240, while P10 has 1024 module pixels and comes in 320 x 320 size.
In this case. P6 LED has a higher pixel density compared to P10 LED display. It means that the P6 LED display has better viewing resolution from a closer distance and the P10 LED display is better for long-distance viewing.
Continue reading to learn about:
- The importance of pixel pitch
- How pixel pitch affect image quality
- What to expect from P6 and P10 LED
- How to choose the pixel pitch for your LED
- And a lot more.
2. What’s The Importance Of Pixel Pitch Of An LED Display?

LED screen illuminating display device that uses light-emitting diodes mounted on the instrument panel is often referred to as PCB (printed circuit board).
These LEDs are small conductors that emit different colored lights when voltage is applied. These lights are responsible for displaying attractive images/pictures on your screen monitor.
There are numerous kinds and variations of LED displays that you can buy in the market today. The difference between these variations has something to do with the LED configuration within the LED panel.
While all LED displays have their advantages, there is always one best suited for you, depending on what application you will use it.
The pixel pitch of an LED display represents the distance between each diode in (mm) and refers to the density of light-emitting diodes in each LED module/panel. It is vital to understand when buying an LED display because it directly correlates with the LED screen resolution.
And as you already know, screen resolutions affect the viewing experience of your audience. So, it is highly recommended that you seek an expert’s advice when choosing an LED display for your intended application.
You can learn more about pixel pitch by reading this article.
3. What To Expect From P6 And P10 LEDs?
As you search for a good LED display for outdoor use, you will learn that P6 And P10 LEDs are two of the most desired options by many users. It is often confusing to decipher what is best for you as there are many other choices, and they all seem to be good and have numerous advantages. Perhaps, let’s learn more about the differences between the P6 And P10 LEDs.

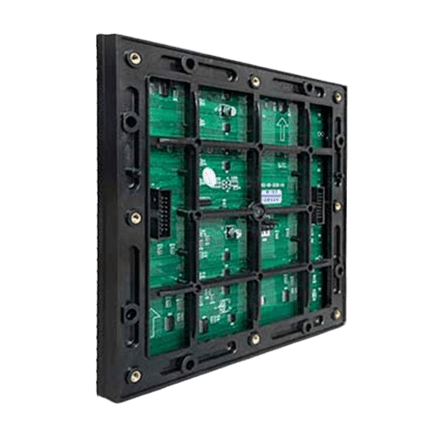

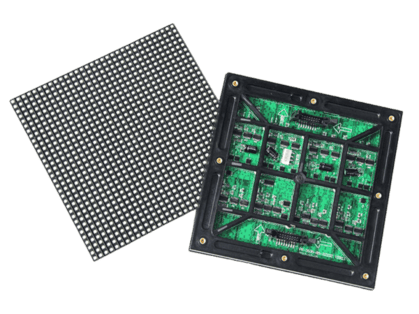

A. P6 LED

P6 LED display is ideal for both indoor and outdoor use. It offers a vivid and clear display/screen resolution. The screen brightness reaches up to 2000 nits, and it has a wide viewing angle of 140 degrees (horizontal and vertical). It is ideal for large LED audio-visual displays in museums, hotels, airports, theaters, schools, shopping malls, churches, and other venues that can hold big crowds.
P6 LED Display Parameters
P6 LED Parameters | |
Pixel Pitch | 6 mm |
LED Configuration | 3 in 1 SMD 3528 |
Screen Brightness | ≥ 2000 |
Refresh Rate | ≥ 1000 |
Viewing Angle | 140 º vertical / 140 º horizontal |
IP Protection Rate | IP43 (indoor) and IP65 (outdoor) |
Cabinet Size | 960 x 960 (customizable) |
What to Expect from P6 LED Display?
- Excellent Performance
- Flexible Installation Methods
- Seamless Screen Connection
- Clear Image and Picture Quality
Learn more about our P6 LED display by logging on https://www.yuchip-led.com/p6-indoor-high-resolution-led-display.html/.

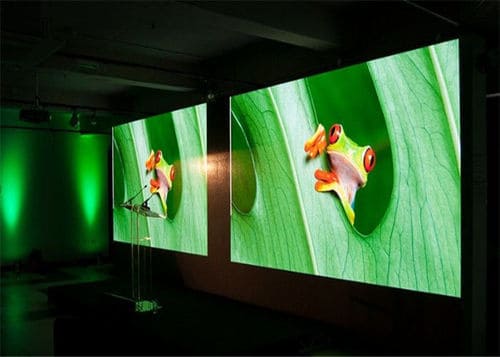

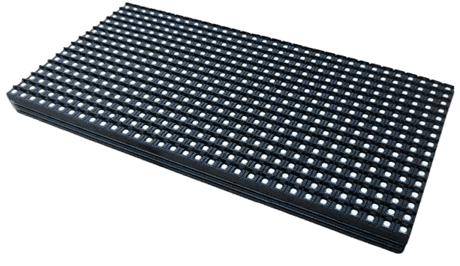

B. P10 LED

The P10 LED display is great for outdoor applications. It offers a high resolution of 10,000 pixels/m². P10 is a popular option for a large-scale LED screen worldwide because it is designed for long-hour operations and has a long lifespan. It is also a cost-effective LED display you can install on a steel pole, wall building, and roof.
P10 LED Display Parameters
P10 LED Parameters | |
Pixel Pitch | 10 mm |
LED Configuration | 3 in 1 DIP 346 |
Screen Brightness | ≥ 8000 |
Refresh Rate | ≥ 600 |
Viewing Angle | 140 º vertical / 140 º horizontal |
IP Protection Rate | IP65 (outdoor) |
Cabinet Size | 960 x 960 x 150 (customizable) |
Learn more about our P10 LED display here https://www.yuchip-led.com/products/p10-outdoor-led-display-screen/
What to expect from the P10 LED Display?
- Good Picture Quality
- Easy Programming and Configuration
- Low Power Consumption
- Slim Design
- Weather Resistant
Best Applications: Roads and Highways, Building Walls and Roofs, Street signs, LED billboards.
Other LED Options

P3 – P3 LED Display has 3 mm pixel density that delivers superior picture image quality. If you are looking for a more pleasing picture and better screen resolution for close viewing, P3 LED is a great choice. It is excellent for indoor applications such as hotels, malls, etc.
P4 – P4 is a sound full-color display for indoor applications. It has a lower pixel density than P3 but still offers high-definition pictures. Ideal for hotels, shopping malls, corporate offices, banks, command centers.
P5 – P5 LED display has commendable light distribution. It utilized SMD technology, giving it a better contrast ratio than non-SMD screen displays. Its parameter is perfectly suitable for indoor environments such as business establishments, theaters, schools, and many more.
P8 – With an 8 mm pixel pitch, this LED display is one for outdoor use. It has an easy and accessible maintenance process (two-way) that helps you save time, money, and effort. It offers long-distance viewing, good heat dissipation, and protection against various weather conditions.
P16 – Another excellent option for outdoor application. Many referred to this as an LED screen for advertising outdoor. P16 has an ultra-wide viewing angle and high brightness to ensure that your content/message is visible even under high ambient light. It also has the high-quality sealing capability to protect the LED screen from inclement weather.
4. How To Choose The Correct Pixel Pitch Size For LED?

Pixel pitch affects both the resolution and viewing distance of an LED display. When the pixel pitch has a smaller value/number, the density is higher. As a result, the LED screen delivers images with better details and higher quality.
But that doesn’t mean you always have to buy an LED display with a lower pixel pitch. It all depends on your needs. Like we said, pixel pitch also dictates the minimum viewing distance for your LED display.
If you expect your audience to be within close distance from your LED display, that is when lower pixel pitch will be a great choice.
Otherwise, go for an LED display with a higher number. Let’s put it this way. The farther your audience will be from the screen, the higher the pixel pitch you can use, and vice versa.
Therefore, when choosing the pixel pitch size for your LED display, you have to consider two factors: required image resolution and audience viewing distance.
Here’s a simple guide to help you decide which one is best for you:
LED Display | Pixel Pitch | Minimum Distance | Optimum Viewing Distance |
P3 | 3 mm | 3 m | 6 m |
P4 | 4 mm | 4 m | 8 m |
P5 | 5 mm | 5 m | 10 m |
P6 | 6 mm | 6 m | 12 m |
P8 | 7 mm | 8 m | 16 m |
P10 | 8 mm | 10 m | 20 m |
P16 | 16 mm | 16m | 32 m |
5. Conclusion

Each LED display can offer different advantages and benefits to its users. It’s up to you, as a buyer, to identify which LED display is best suited for your environment, application, and needs. Only by picking the right LED pixel will you get immediate and lasting satisfaction from your purchased LED screen.
YUCHIP will guide you with your decision-making process to ensure that the outcome you will see aligns with the goals you have at the beginning. We have a team of field professionals who can give expert advice on your LED project.
Also, we can do a customization just for you to make your dream LED display a reality. We are your one-stop shop because we have got it all for you. From pre-sales services up to after-sales support, we can offer it for you.
For inquiries about our P6 or P10 LED products, please don’t hesitate to send us, and we will get back to you as soon as we can.
