How To Make Novastar RCFG File For A P2.5 LED Panel?



Testing an LED screen is a vital step after purchase. It is performed to test whether the LED screen is designed thoroughly for steady performance and make way for product replacement if there’s an issue.

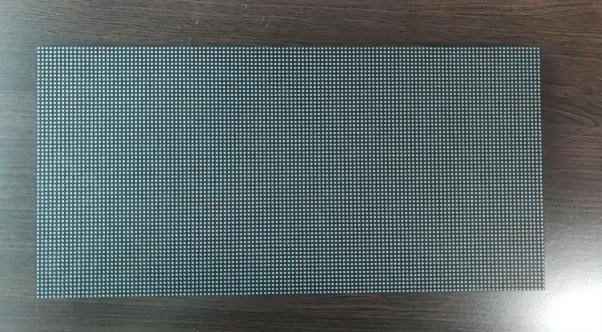

Novastar RCFG

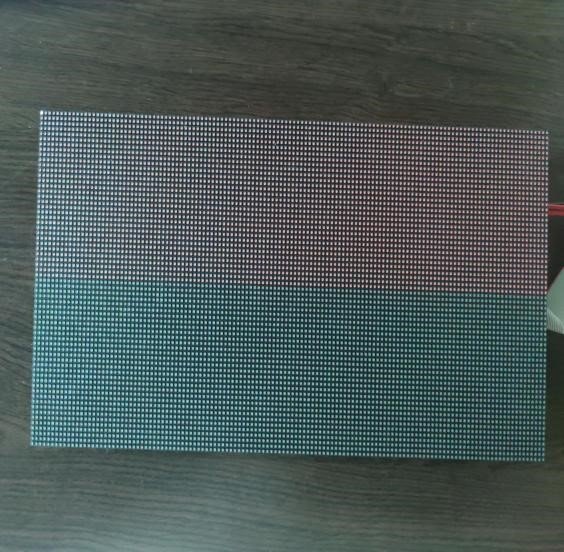

P2.5 LED Panel

And to certainly do the task by yourself, here’s a systematic guide if you opt to do it.



  • Connect the computer with an LED sending card/sending box.

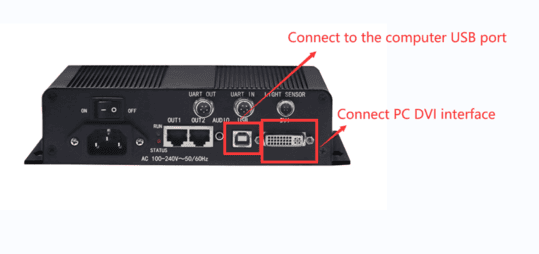

1.1 A Synchronous LED sending card connects a USB port and DVI interface with a computer.

RCFG

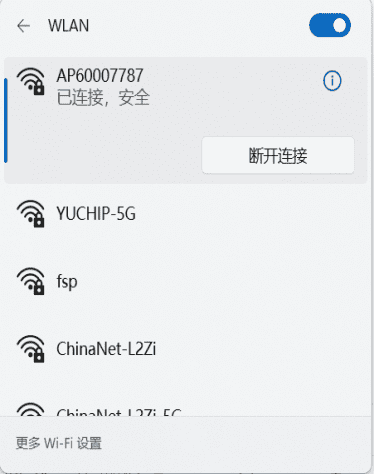

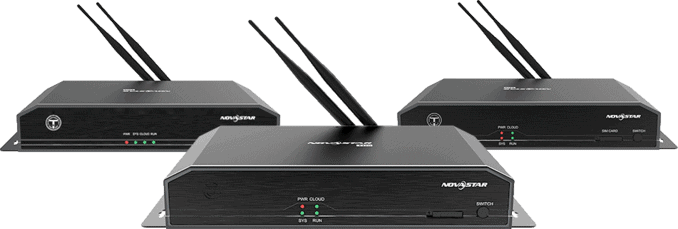

1.2. The asynchronous card connects computer WiFi through an LED sending card AP hotspot. The password of AP is 12345678.

RCFG File

Novastar File

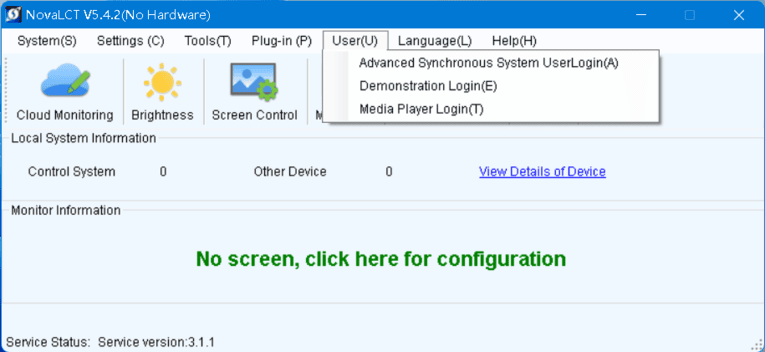

  • Open NovaLCT software on your computer, and click “User.”

NovaLCT

2.1. Synchronous LED Sending Card

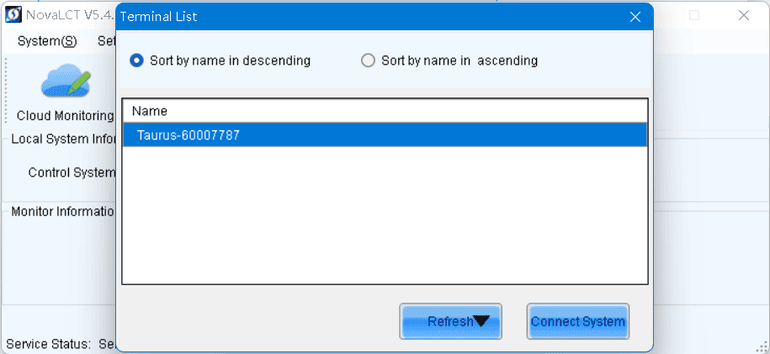

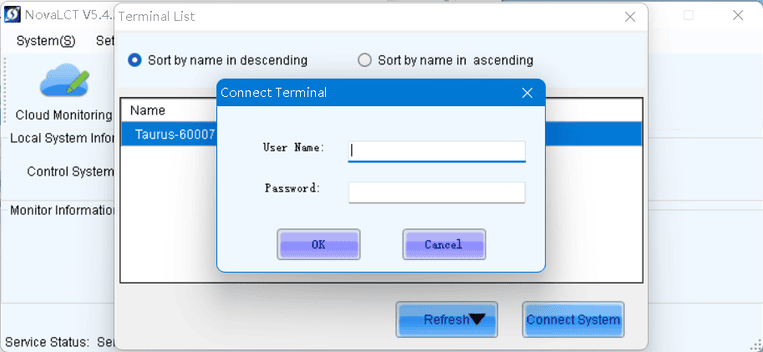

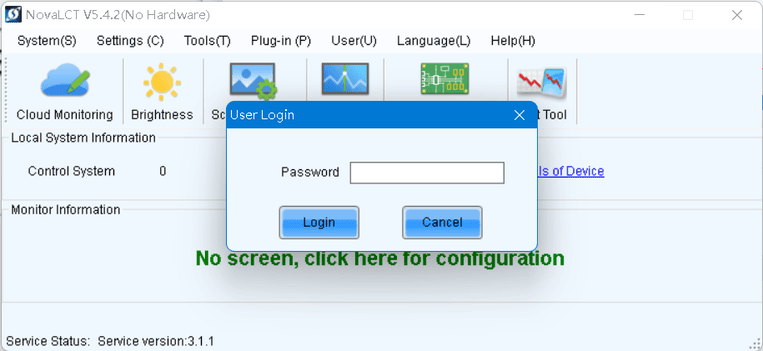

When the computer connects with sending card, click “Advanced Synchronous System UserLogin (A).” When the computers do not connect with the sending card, click “Demonstration Login(E).”

2.2. Asynchronous LED Sending Card

Click’ Media Player Login’

Novastar File

2.3. The password of ‘Advanced Synchronous System UserLogin’ and ‘Demonstration Login(E)’ is: admin

Novastar RCFG File Steps

2.4. For “Media Player Login,” the User Name is admin. Password is 123456.

DCLK

ICN2013



  • Enter the page of NovaLCT receiving card bright setting.

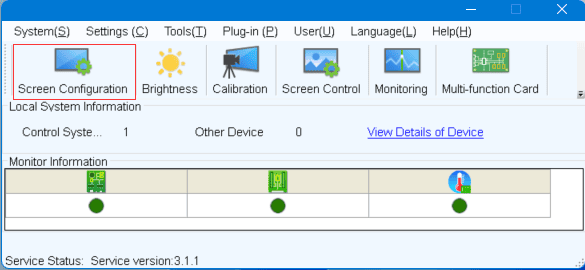

3.1. Click “Screen Configuration” to enter the LED sending card & receiving card setting page.

Smart Settings

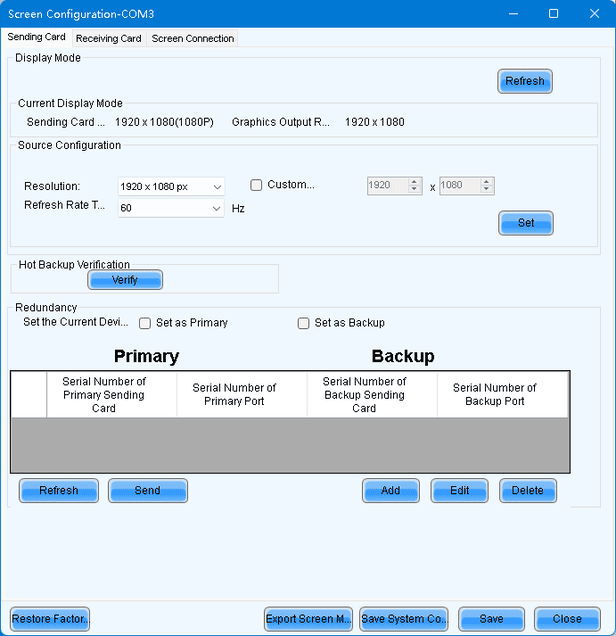

3.2. Set the computer resolution the same as LED sending card resolution (if there is a video processor, the input resolution of the video processor should also be the same as the resolution of the computer and the LED sending card). The solution of the asynchronous sending card doesn’t need to be set on NovaLCT software.

Screen Configuration

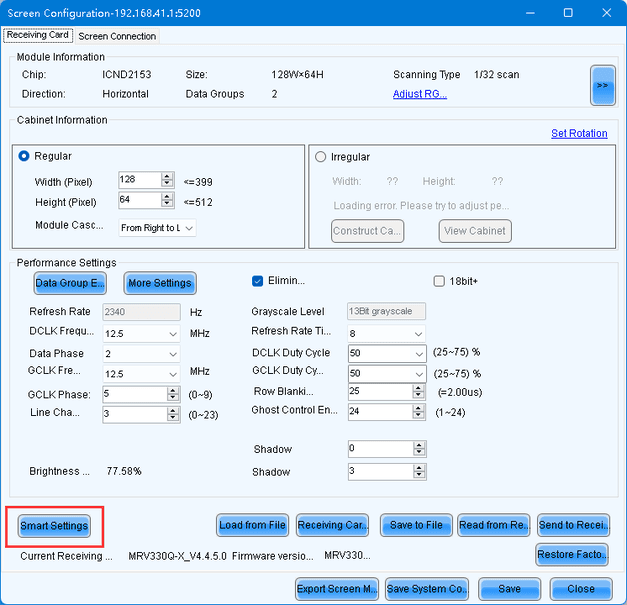

3.3. Click “Receiving Card” and click “Smart Settings” to set up the LED module parameter.

Synchronous LED Sending Card

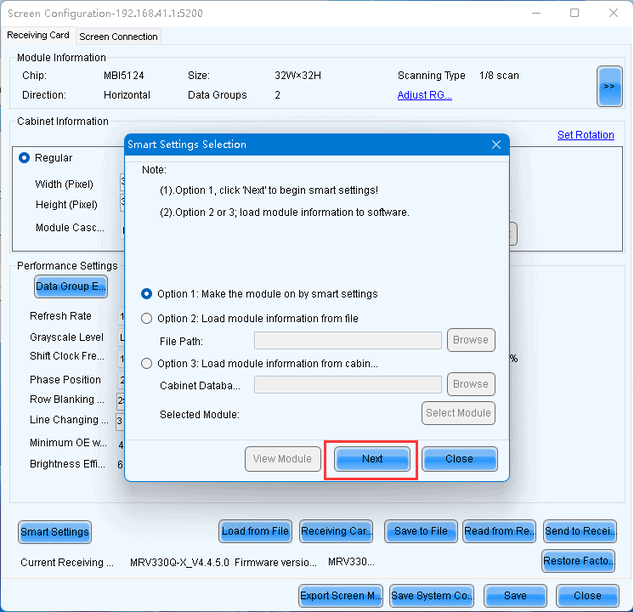

3.4. Click ‘Next’ and fill in the parameters of the LED module.

Asynchronous LED Sending Card

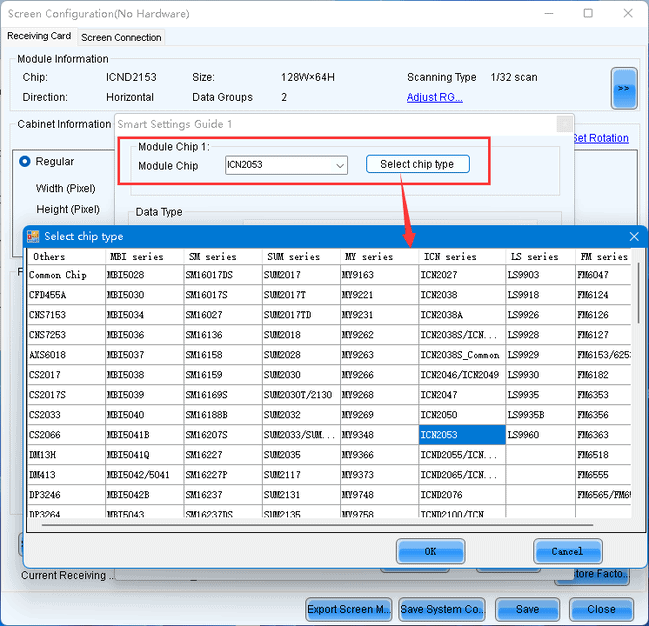

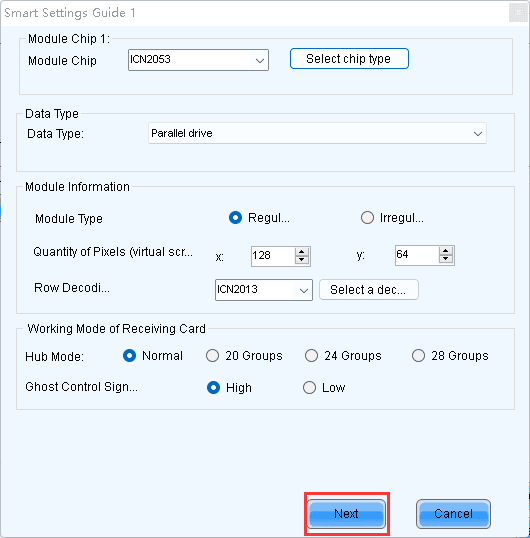

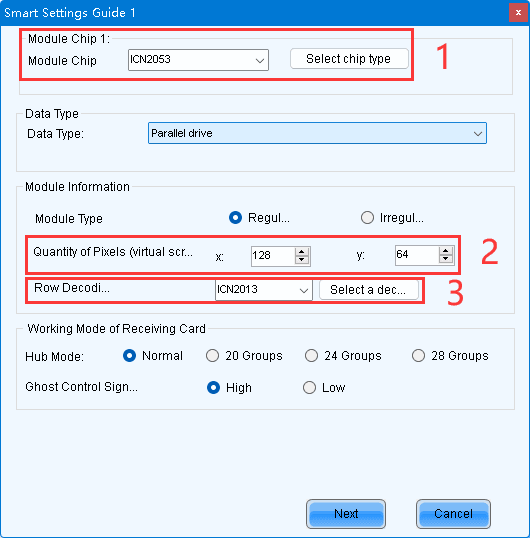

3.5. Select chip type IC (P2.5 ICN2053). In ‘Select chip type,’ choose the same IC as the module model has. (P2.5 IC is ICN2053)

Demonstration Login

3.6. Fill in the correct “x” and “y” parameters according to the pixels of the module. (P2.5 is 128×64 dots)

USB Port

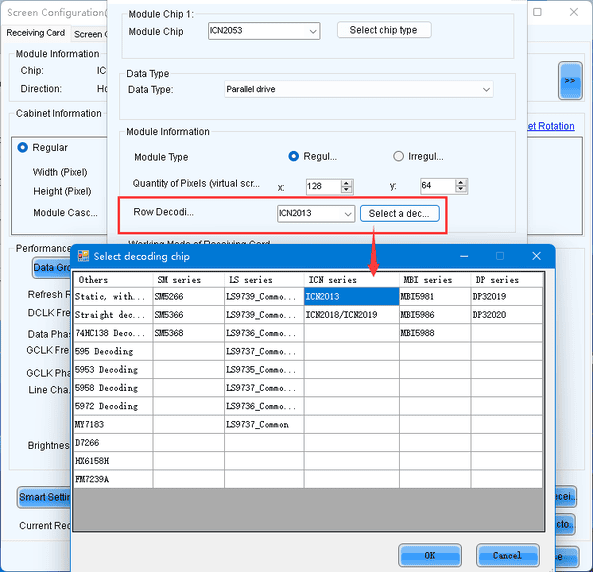

3.7. Select the corresponding model according to the row decoding IC on the module. (The row decoding of P2.5 is ICN2013)

DVI Interface

3.8. After completing the information fulfilling, click ‘Next.’

AP Hotspot

3.9. Select the corresponding option according to the module status(P2.5 is full black)

Media Player Login

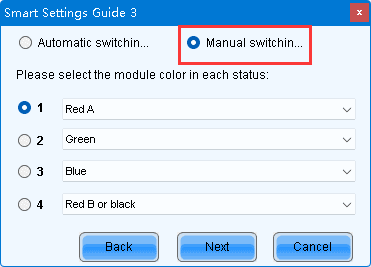

3.10. You could change the automatic switching to manual switching, making it easier to observe the module changes.

ICN2053

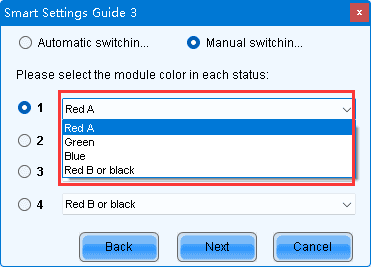

3.11. Click 1.2.3.4 to select the color displayed on the module. (The color of P2.5 is 1: Red, 2: Green, 3: Blue, 4: Black)

NovaLCT File

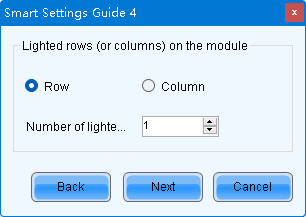

3.12. Fill in the numbers according to how many rows or columns of lamps are lightened on the module. (P2.5 is 32 rows)

NovaLCT RCFG File

3.13. Fill in the numbers according to how many rows of lamps are lighted on the module. (P2.5- 1 row)

NovaLCT RCFG

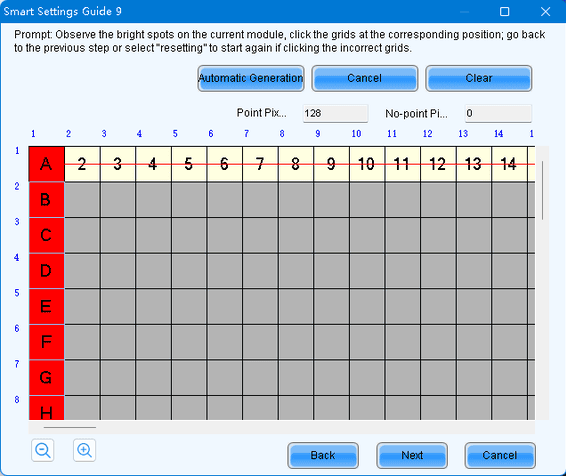

3.14. There will be a lamp flashing on the module; click on the corresponding coordinate point. (P2.5 set as shown below)

P2.5 LED Panel

Novastar Parameter

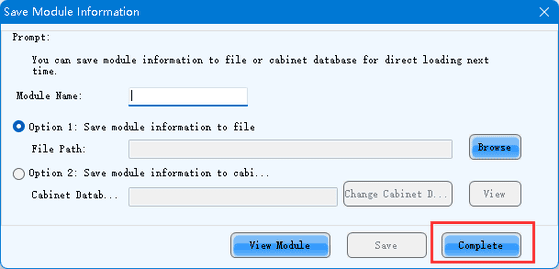

3.15. Finally, when the module usually displays, you can click ‘Save.’

NovaLCT Settings

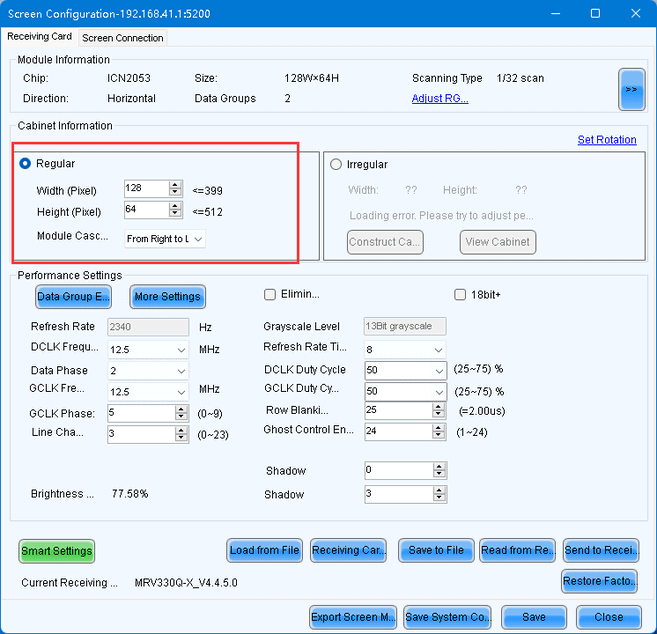

  • Fill in the actual pixels of one module. (P2.5 – 128*64)

Novastar Smart Settings

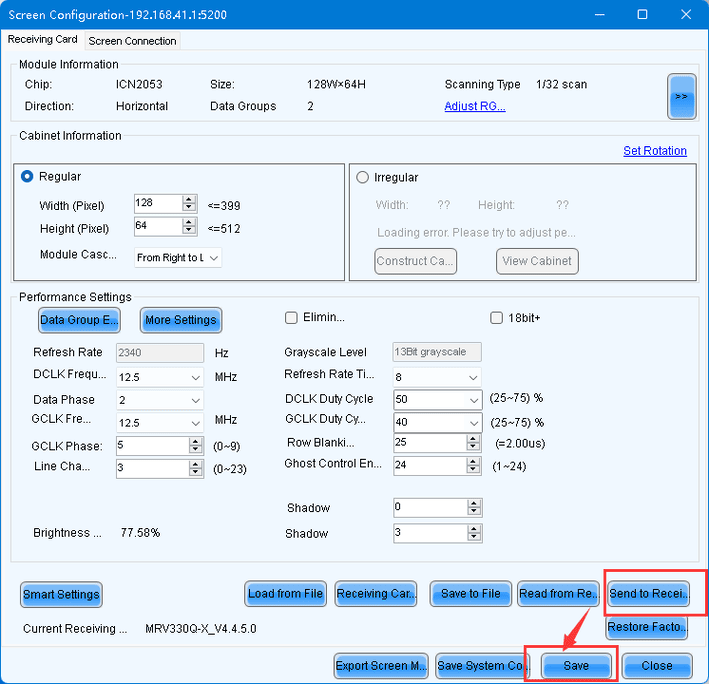

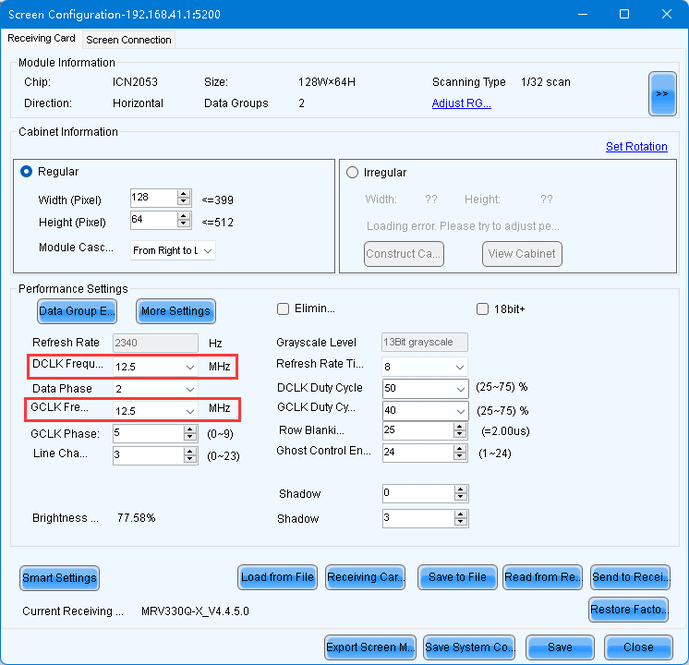

4.1. Adjust the DCLK and GCLK parameters to increase the frequency of the screen, usually around 15.6MHz. (Adjust according to the actual situation) (P2.5在12.5MHZ)(P2.5 – 12.5MHz)

DCLK Parameters

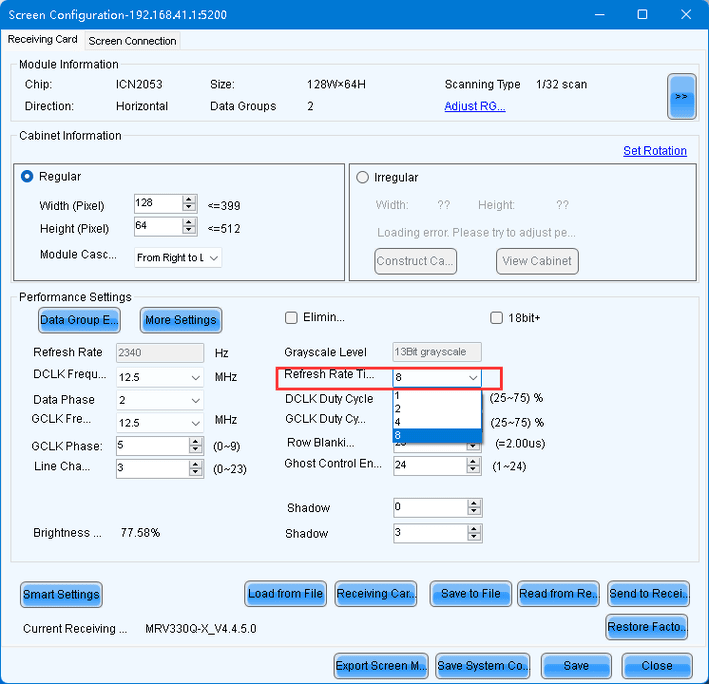

4.2. Increase the refresh rate. As long as the screen does not flicker, it will usually work. Otherwise, it would be best if you reduced the refresh.

GCLK Parameters

4.3. After setting up parameters, click ‘sending to receiving card,’ then click ‘save.’

15.6 MHz

(After clicking save, even if the screen is powered off and restarted, the net will work typically. If you don’t click save, it will display abnormally and re-set needed.)
